The Complete
Interior Design Package

interiorcad for

Full-Featured Cabinet
Smart Custom Parts
Part Layout / Lists
Production Realism
Materials and Fittings Library
Integrated Rendering

INTERIOR DESIGN SOFTWARE.
RUNNING ON VECTORWORKS.

interiorcad enhances your interior design workflows with some amazing 3D technology, tapping into the strong 3D BIM foundation of Vectorworks. interiorcad takes care of object associations and texture mapping, tracks materials and costs and creates automatic schematic drawings with dimensioned individual parts. Head on below for some examples.

interiorcad needs a current version of Vectorworks to run.

WHAT OUR
USERS SAY

THE CABINET

The full-featured interiorcad 3D Cabinet tool allows almost unlimited freedom in creating the cabinet construction you need. interiorcad's mission is bespoke furniture. Flexibility is where interiorcad really shines. Freedom in designing what you need, combined with unprecedented ease-of-use is what makes interiorcad's cabinet tool the #1 choice for designers of individual furniture.

THE CUSTOM PART

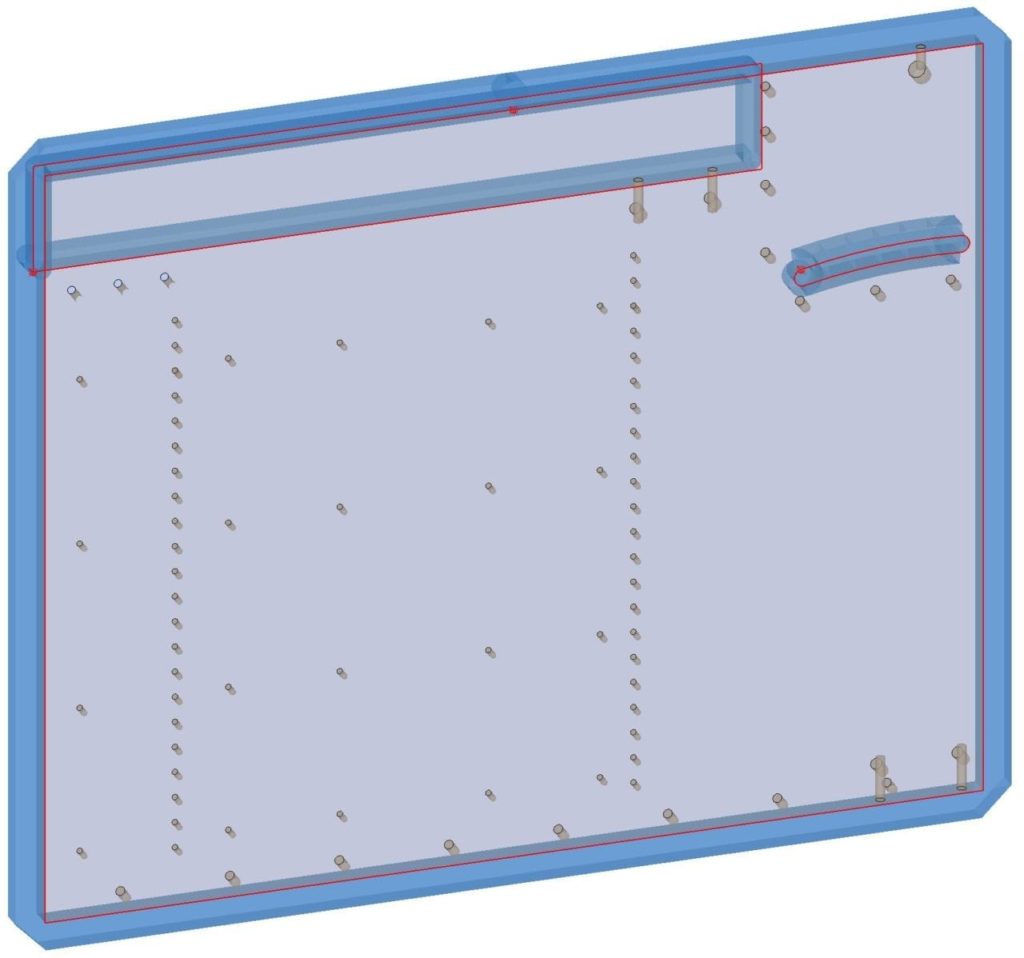

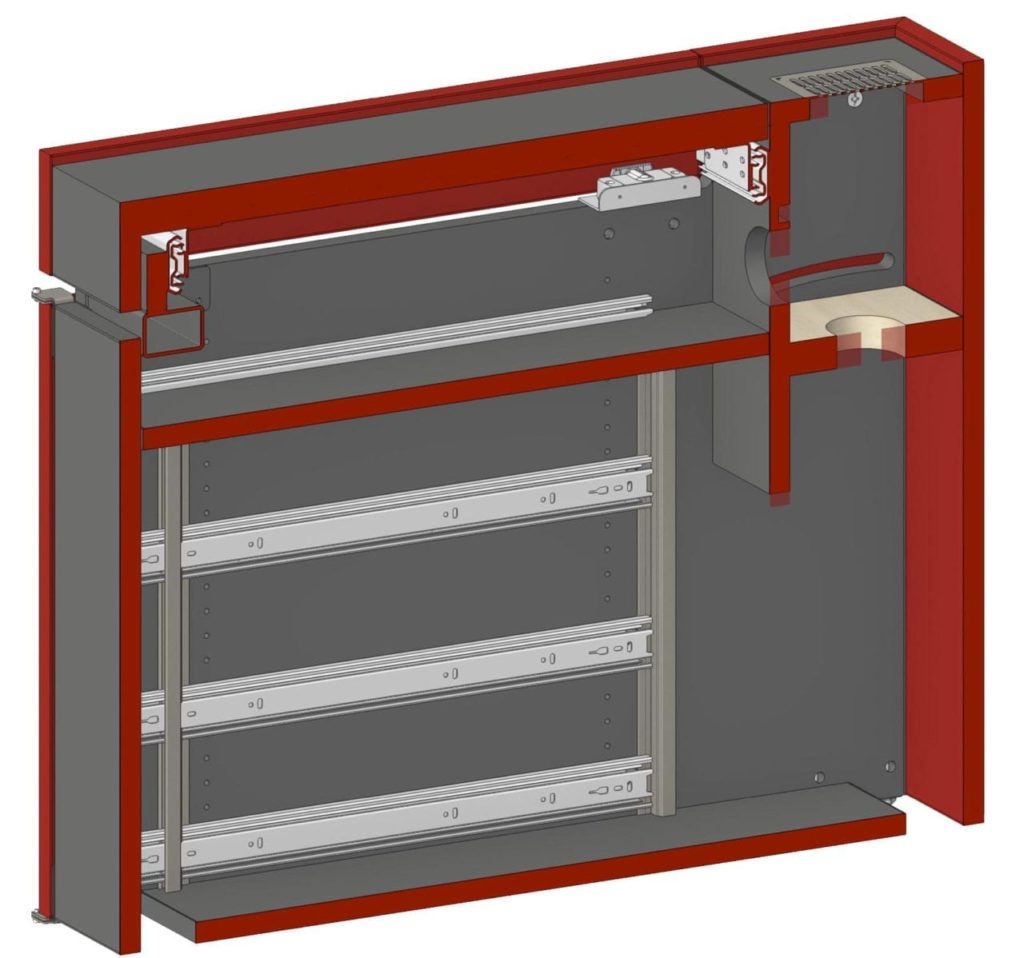

interiorcad's Custom Part is the nucleus of design. Custom Parts can be used individually or in combination with the interiorcad Cabinet, which is itself made out of interiorcad Custom Parts. Each part is modelled like a board material, with a core, two outer layers and edge banding. Each Custom Part can accept any number of millings.Millings can be freely positioned on custom parts. Just like windows in walls.

THE PART LAYOUT

LET YOUR CAD DO THE LEGWORK

Whatever you may do with interiorcad's Custom Parts, or the interiorcad Cabinet - The automatic part layout dimensions everything for you, down to the last drilling. You have full control over the page layout, text-sizes, colours, hatches and a slew of custom settings.

PRODUCTION REALISM

interiorcad lets you see all the little details: edge banding, veneers, millings, core material etc. Everything is rendered physically on interiorcad's 3D Custom Parts. A great way to give you early and reliable feedback to allow you to make the right design decisions.

LIBRARIES

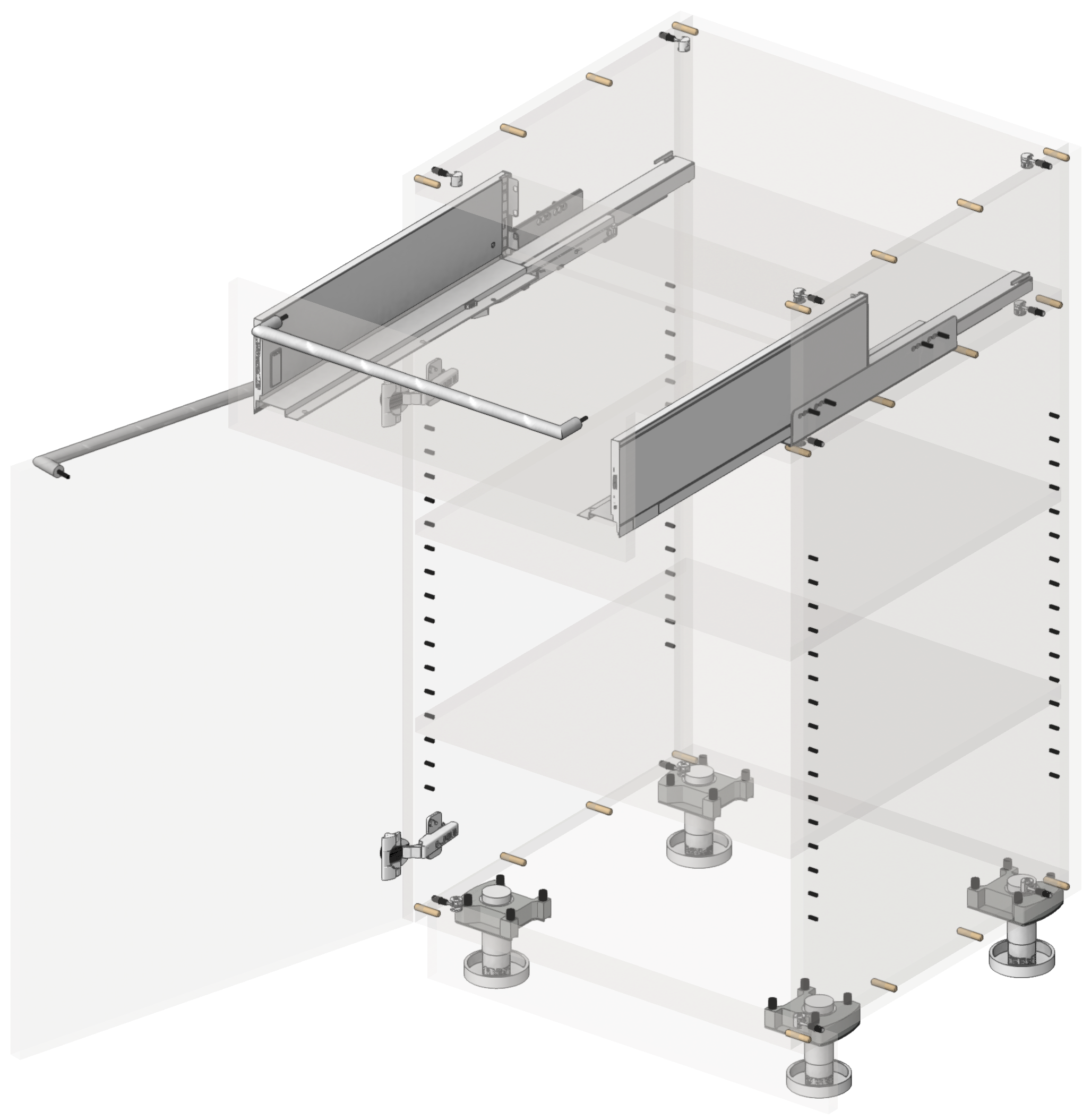

interiorcad comes with a very large collection of up-to-date fittings such as hinges, drawer slides, connectors, feet, dowels and handles. Fittings are linked to a database which stores the placement logic and combination options for each fitting. All fittings are associated with the parts they connect. The database is updated as new fittings appear on the market. More often than not, updated fitting libraries are ready on the same day a new fitting is launched.

Hinges Handles Connectors Feet Drawer Slides System Drawers Line Borings

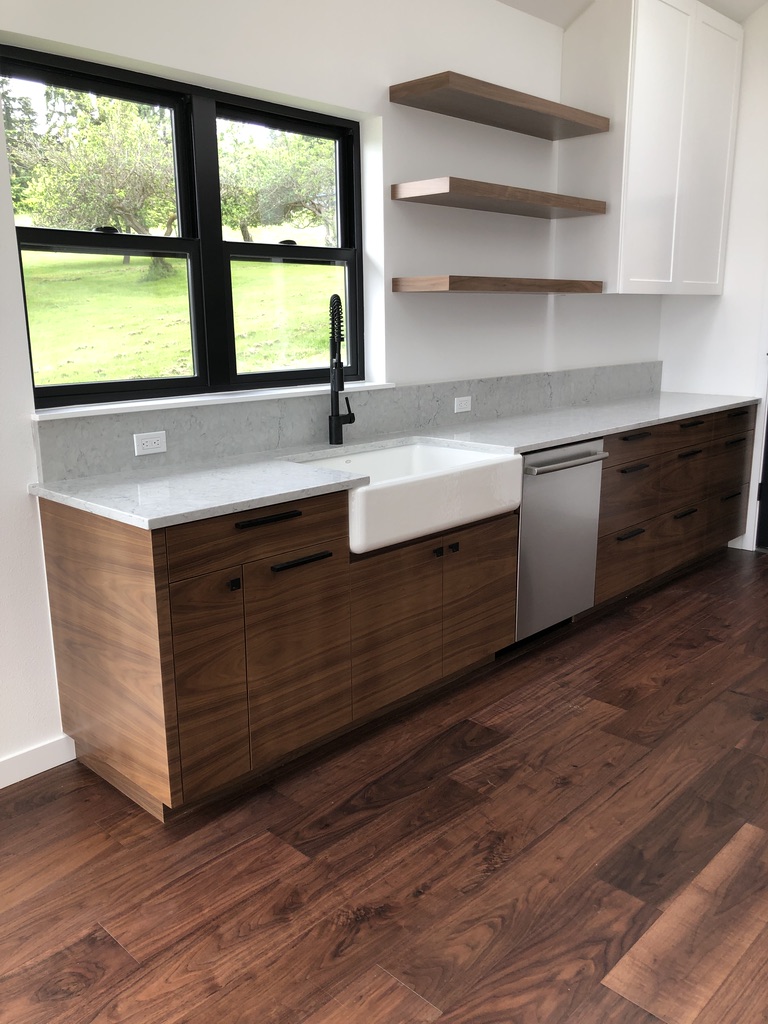

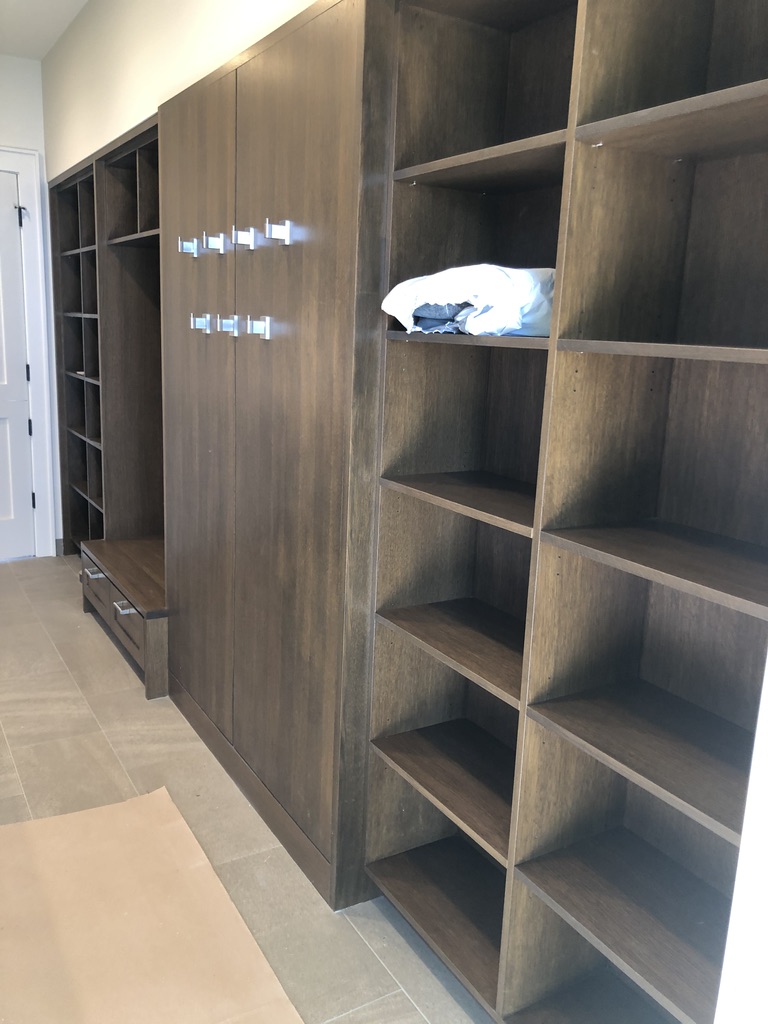

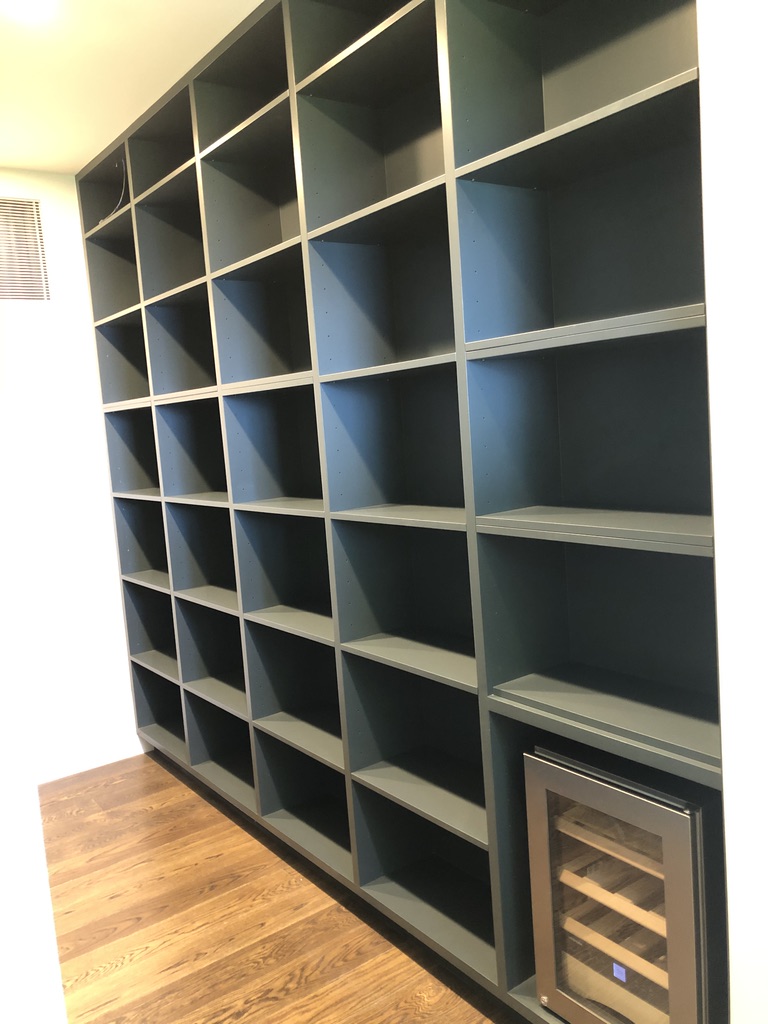

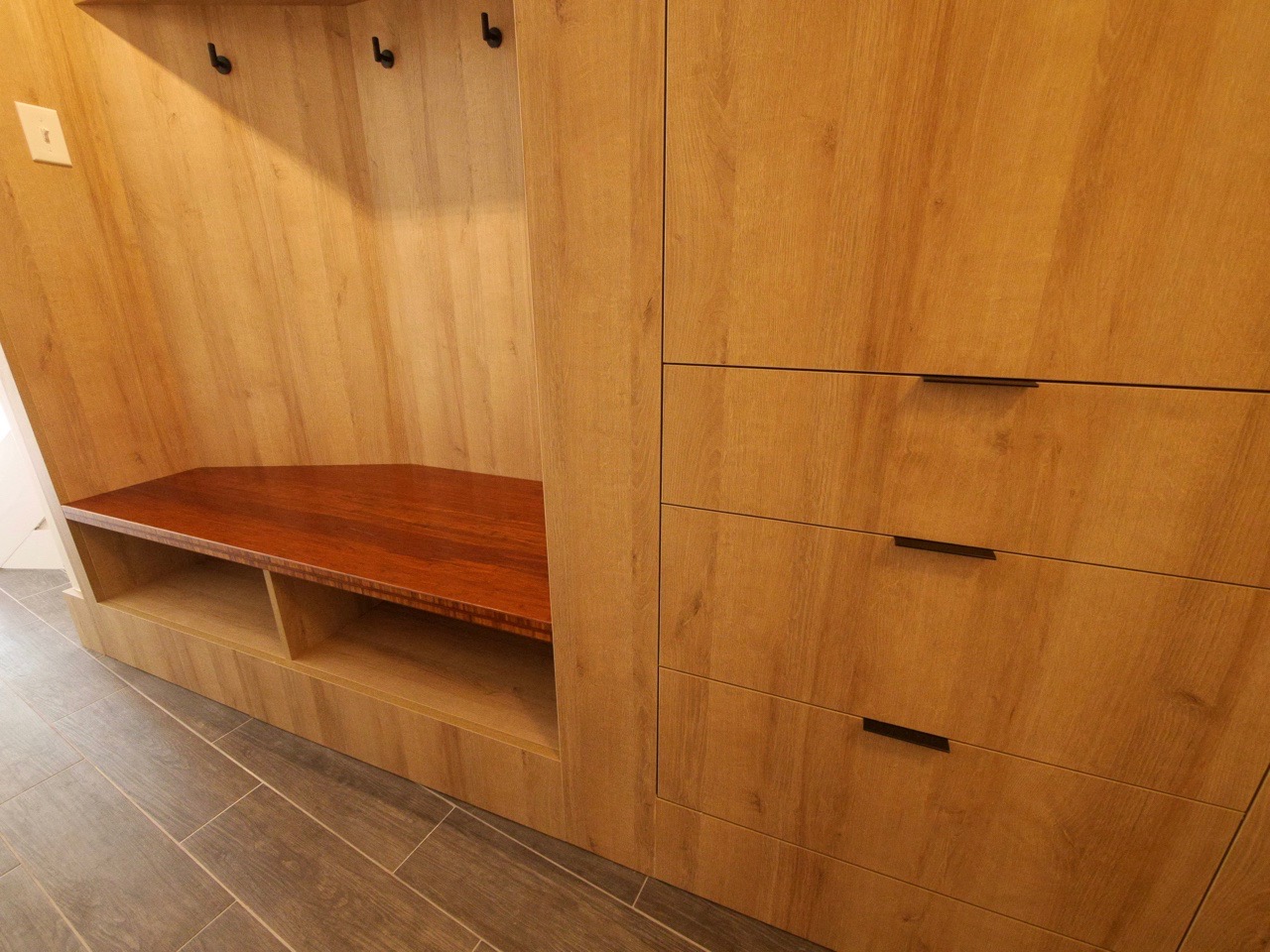

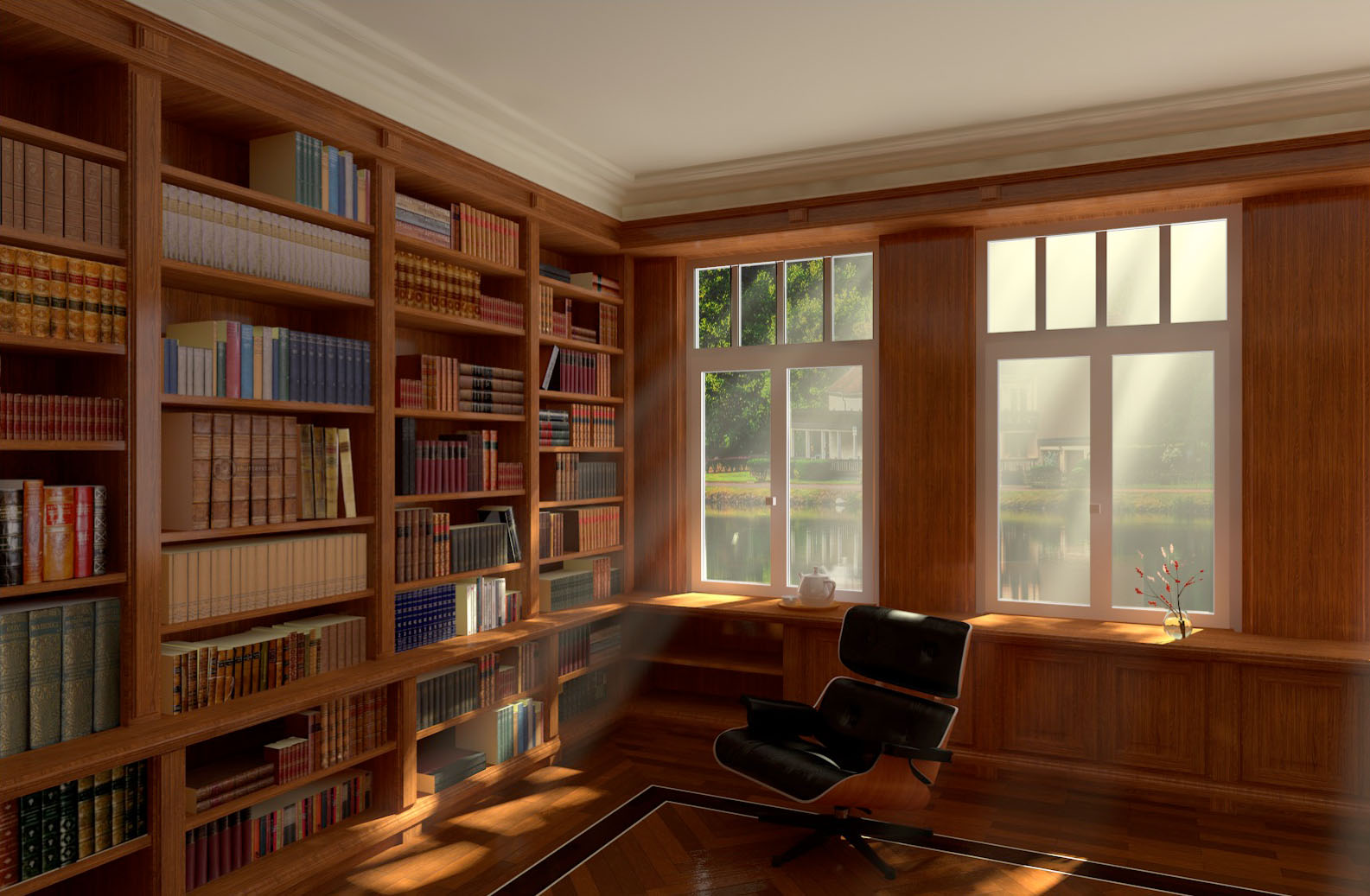

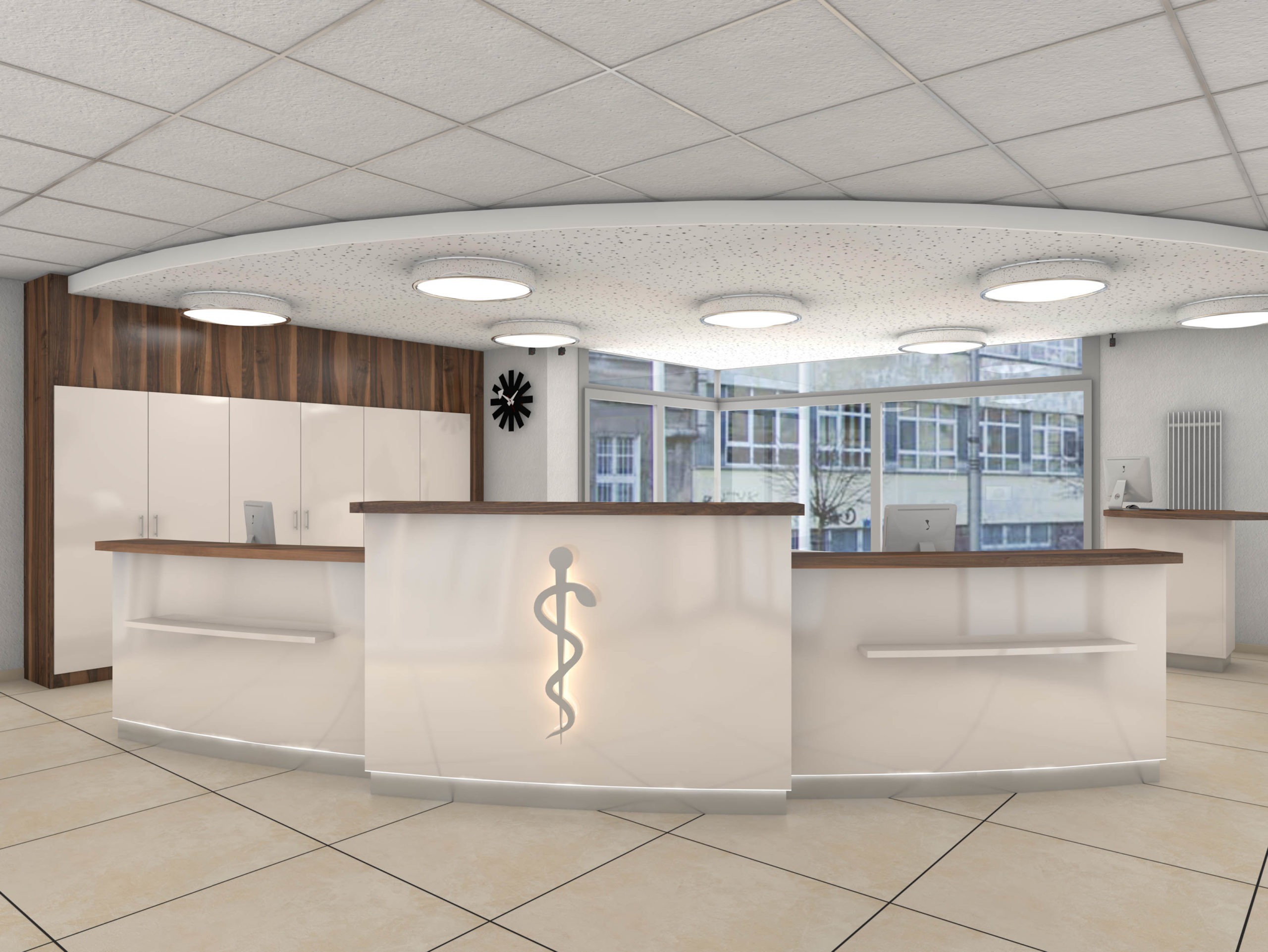

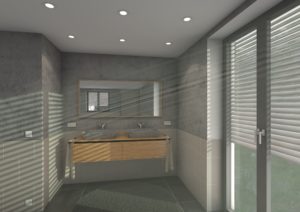

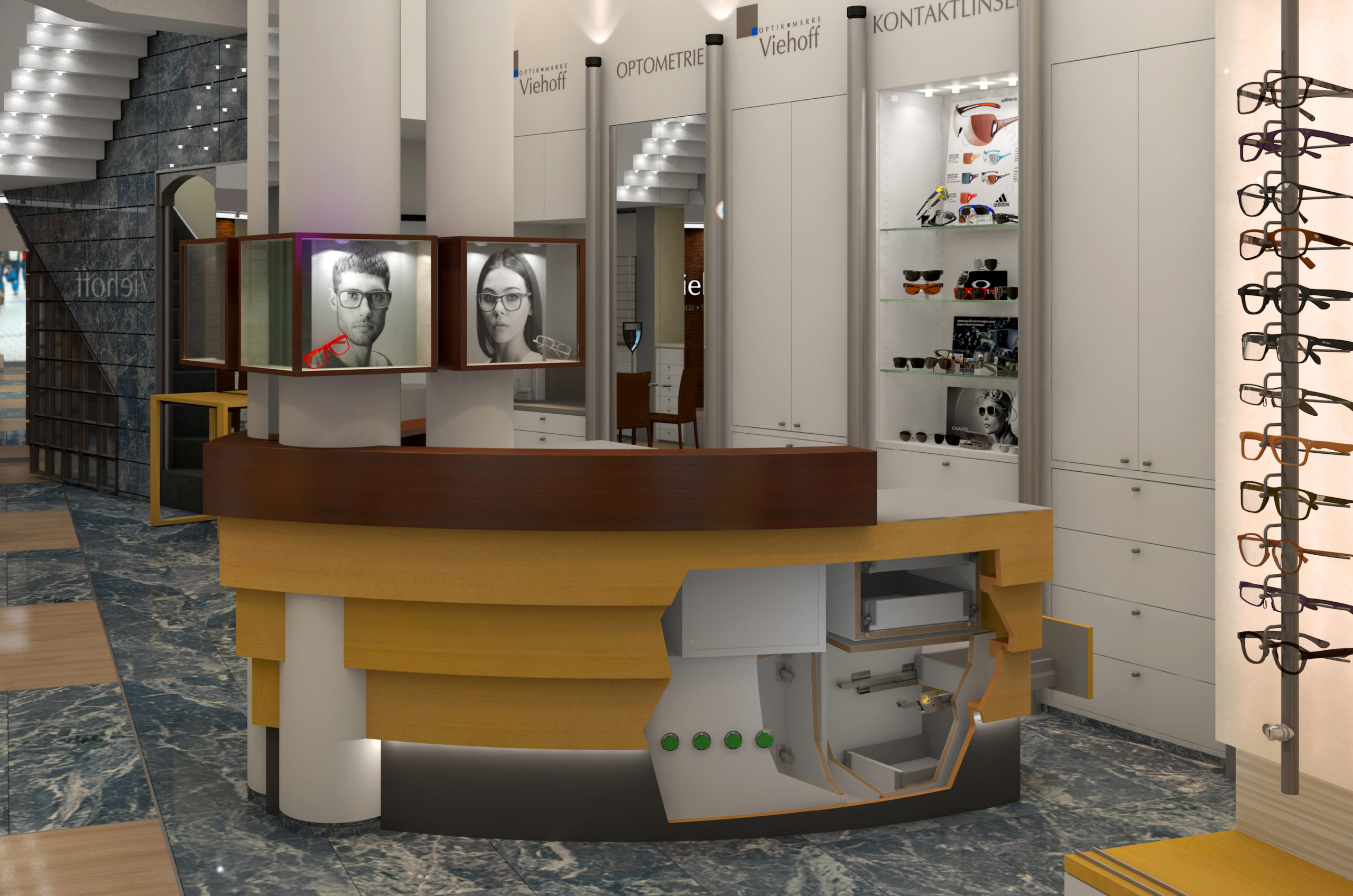

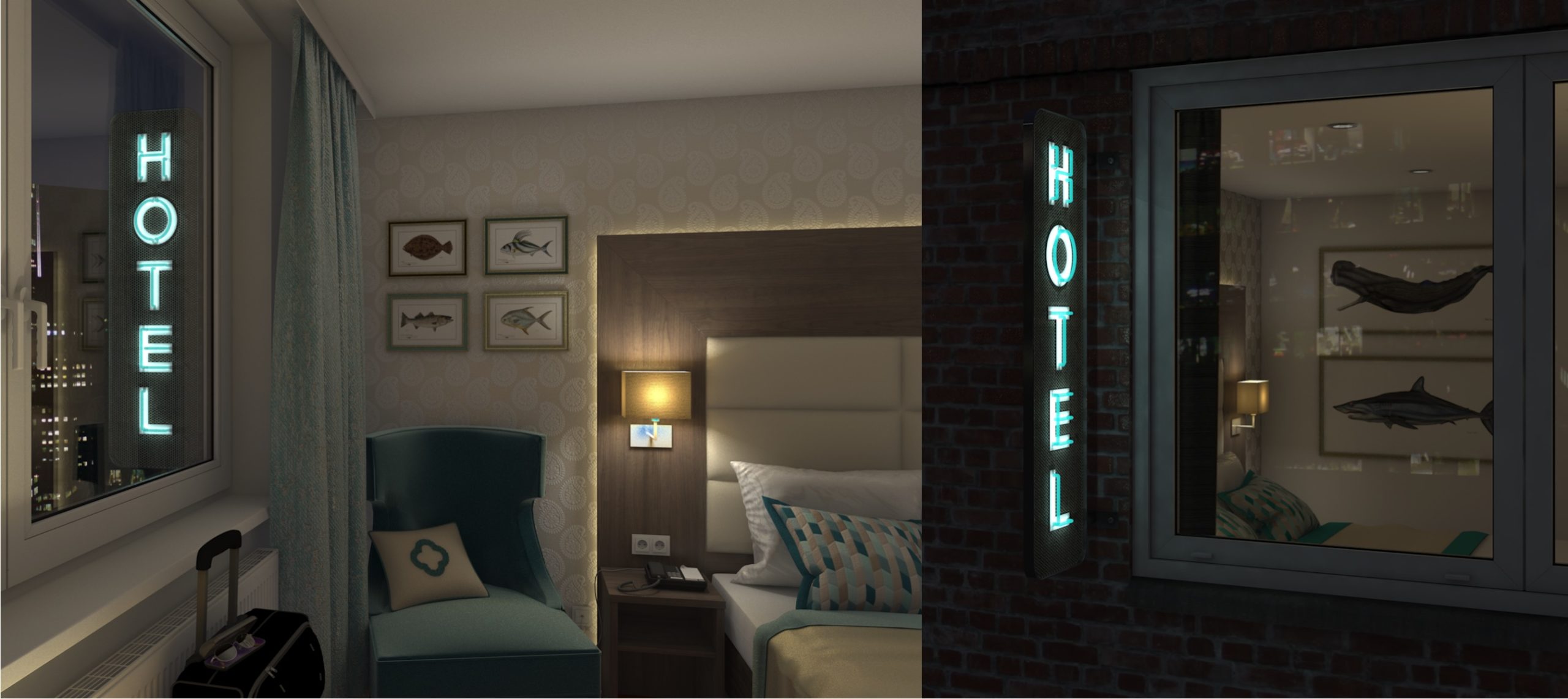

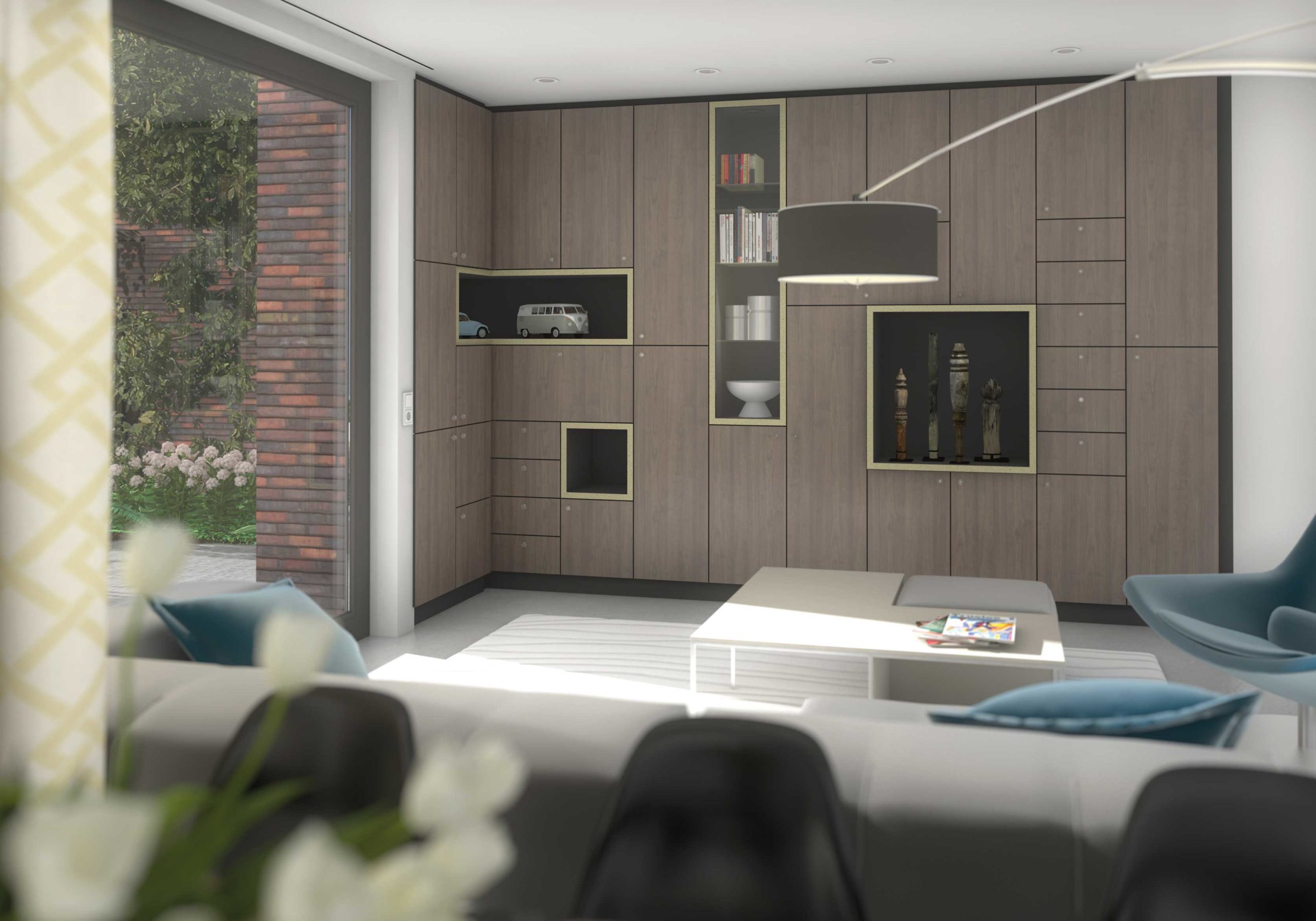

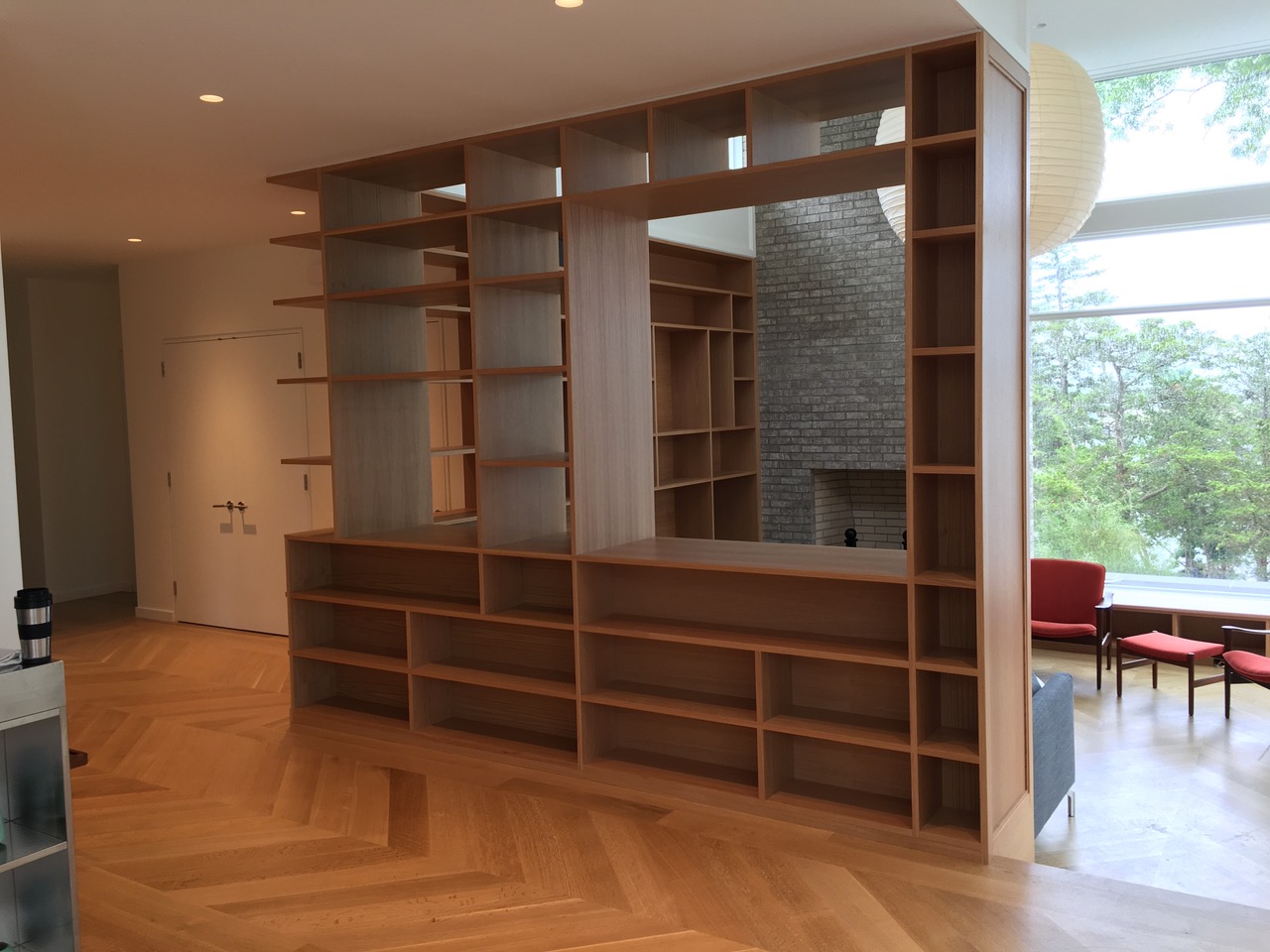

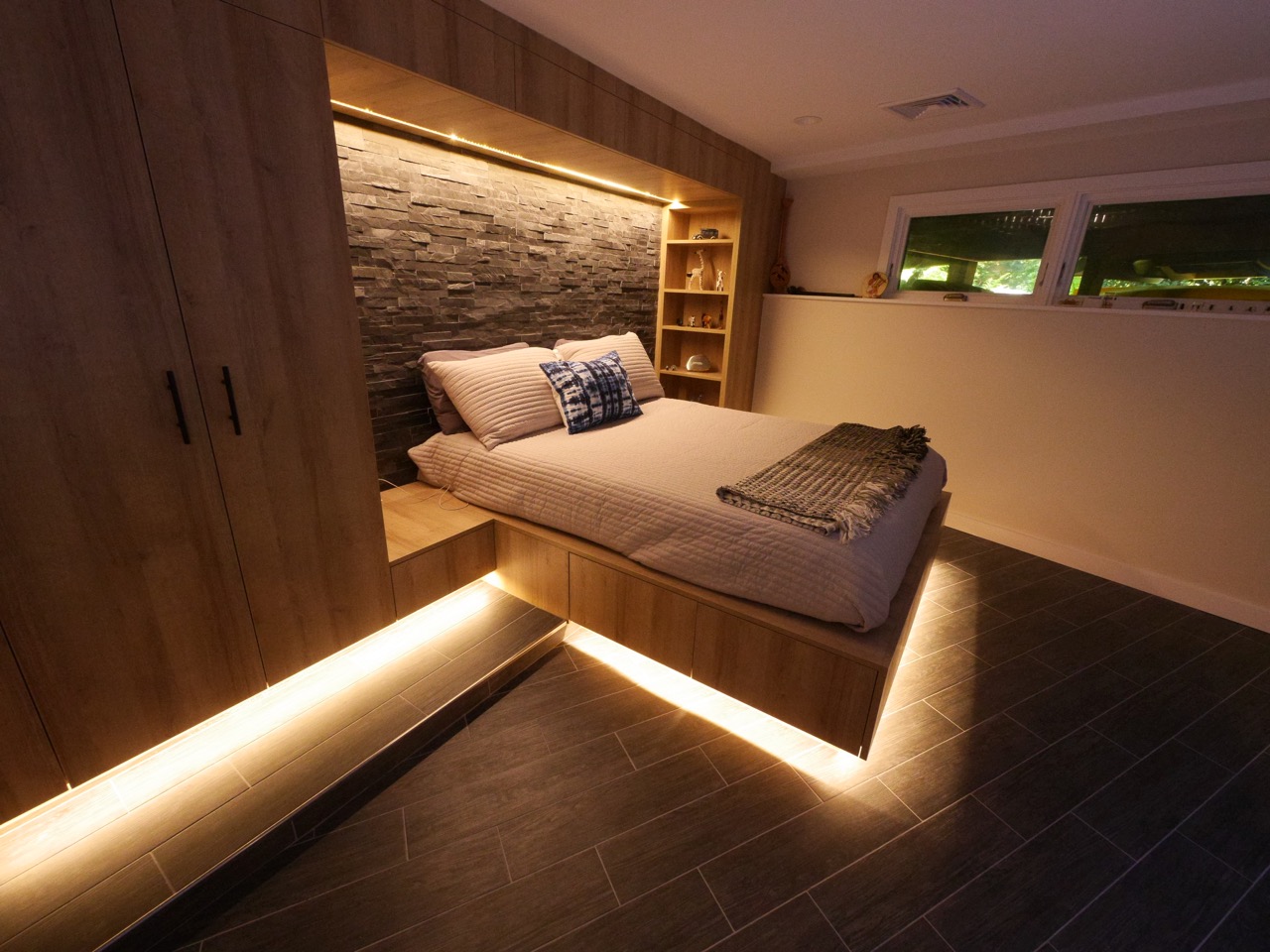

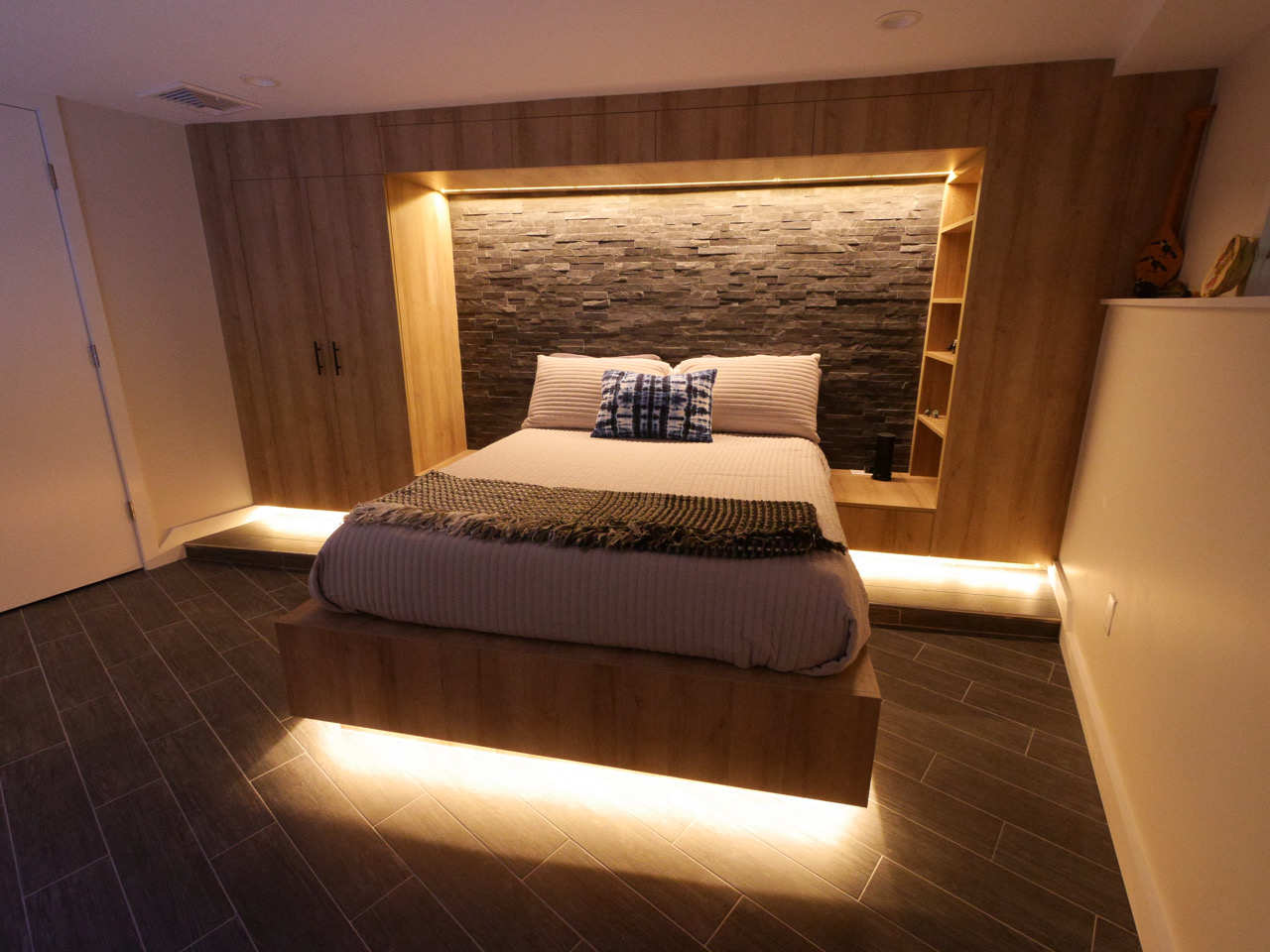

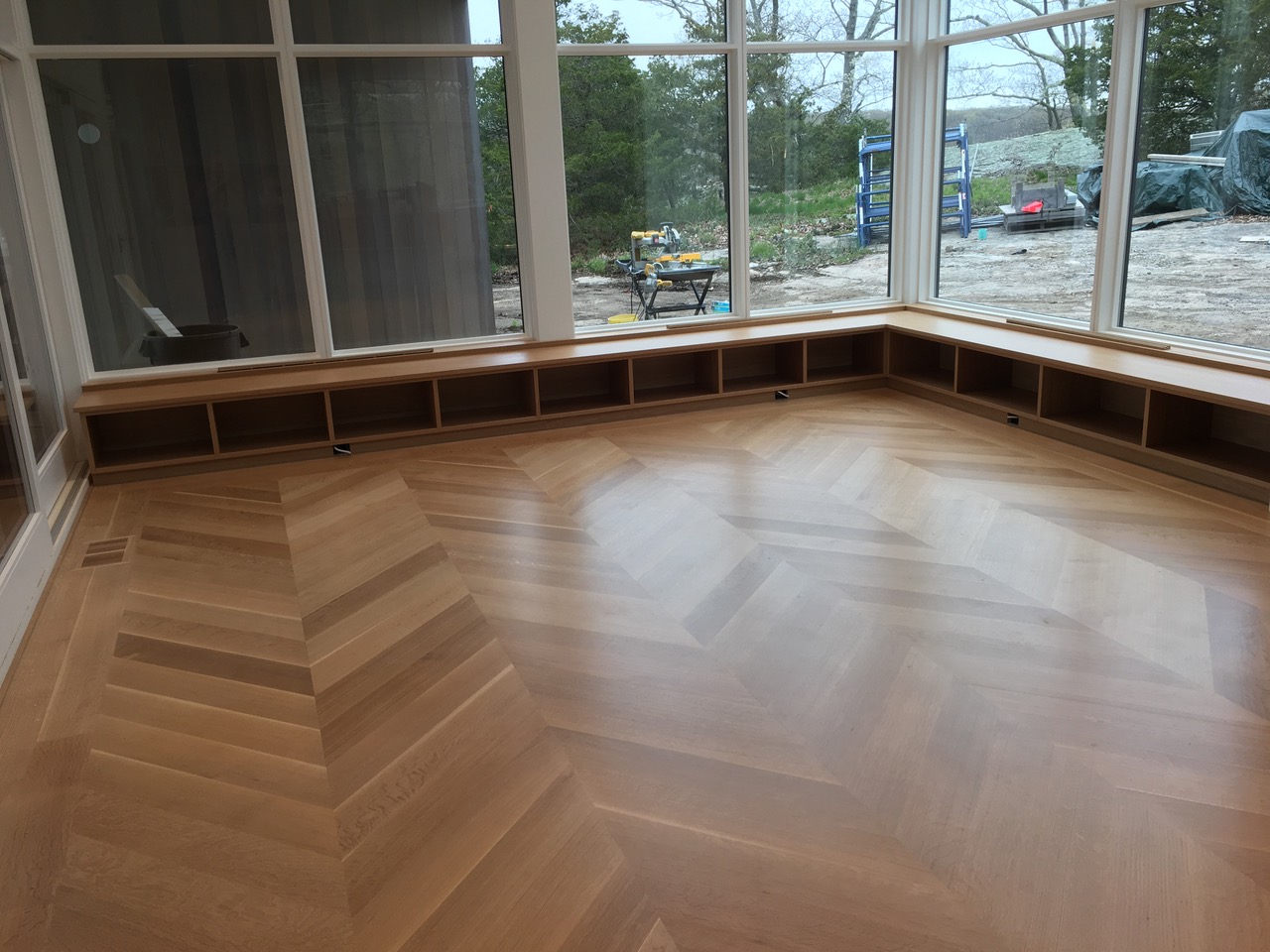

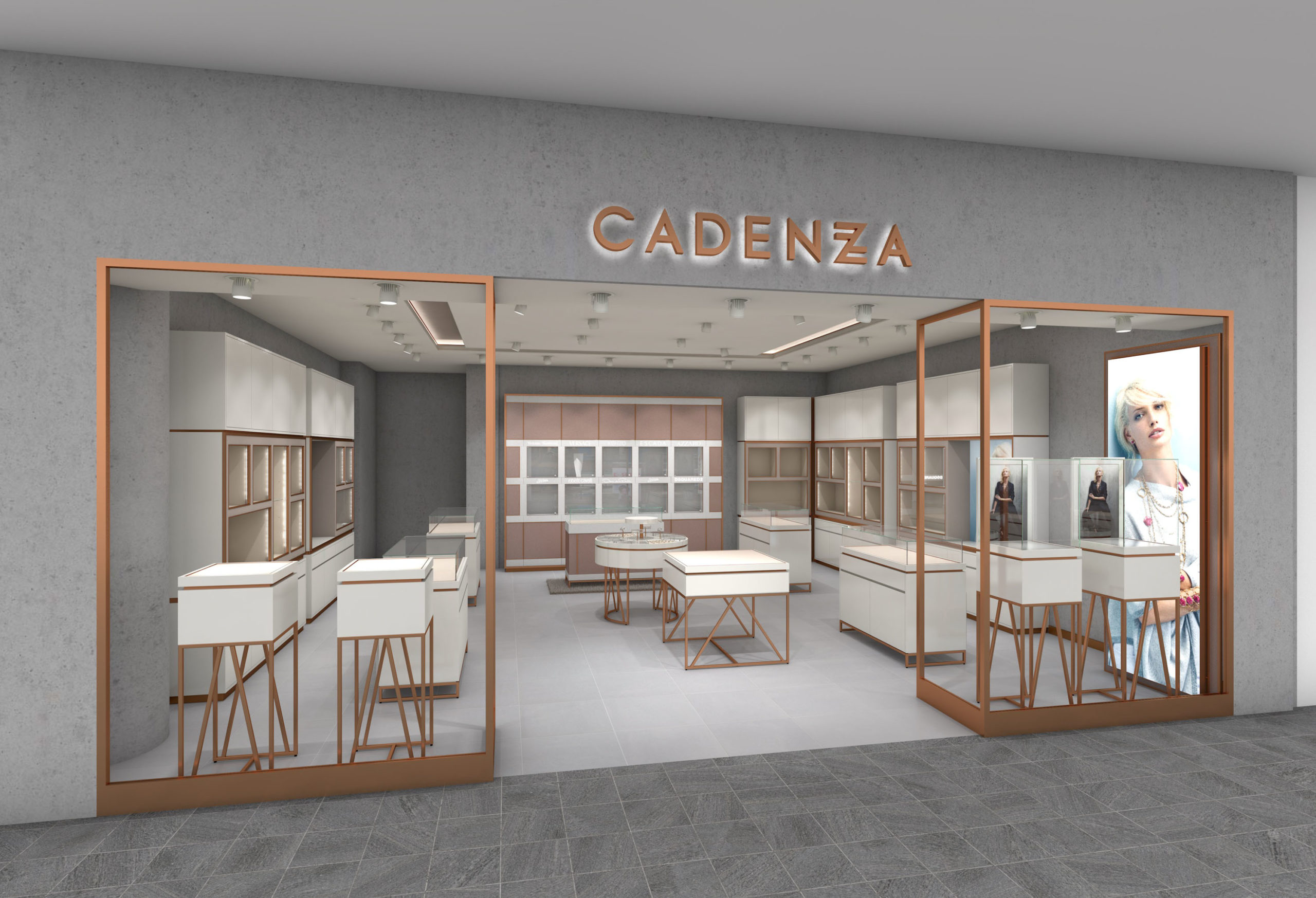

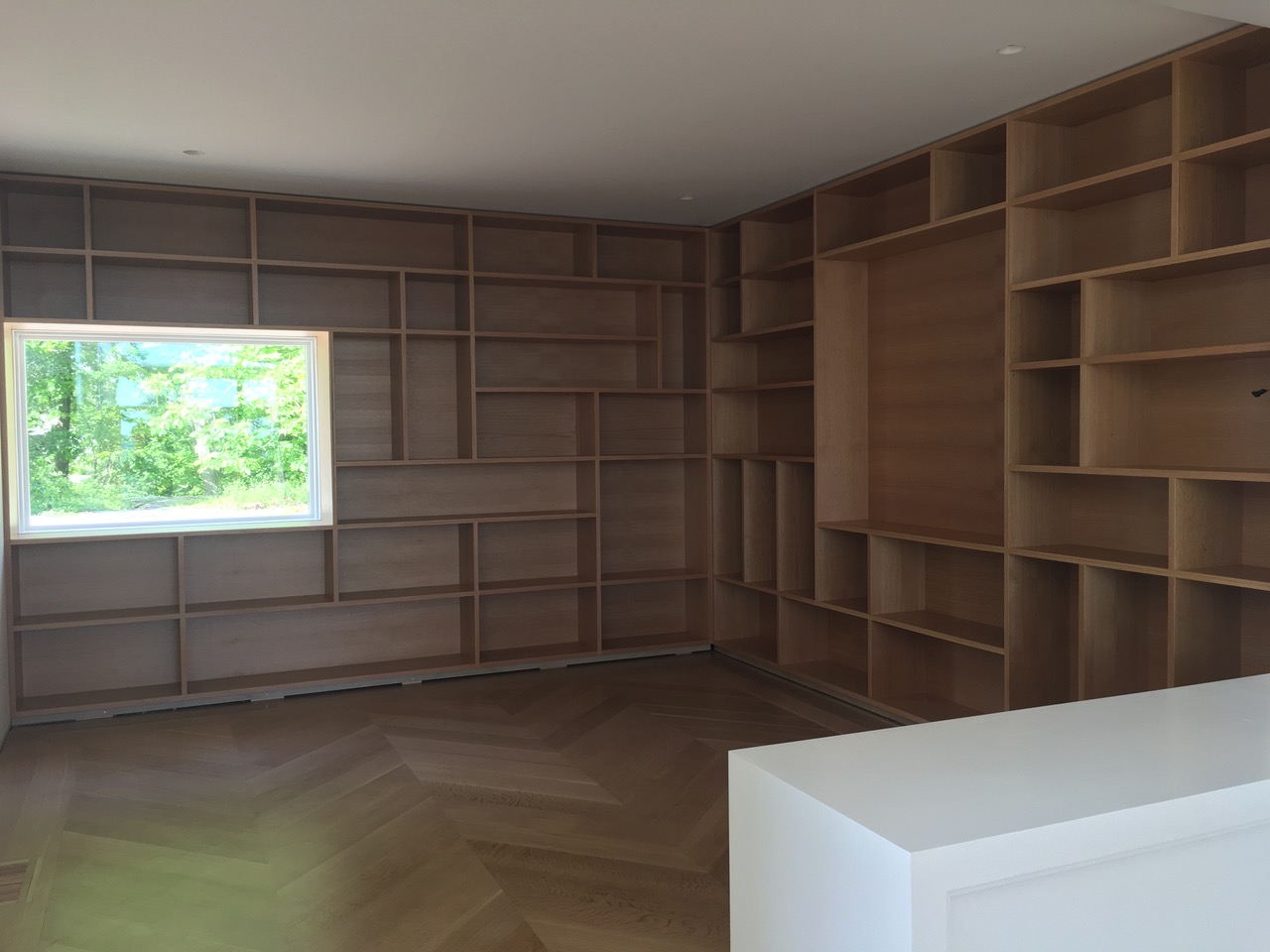

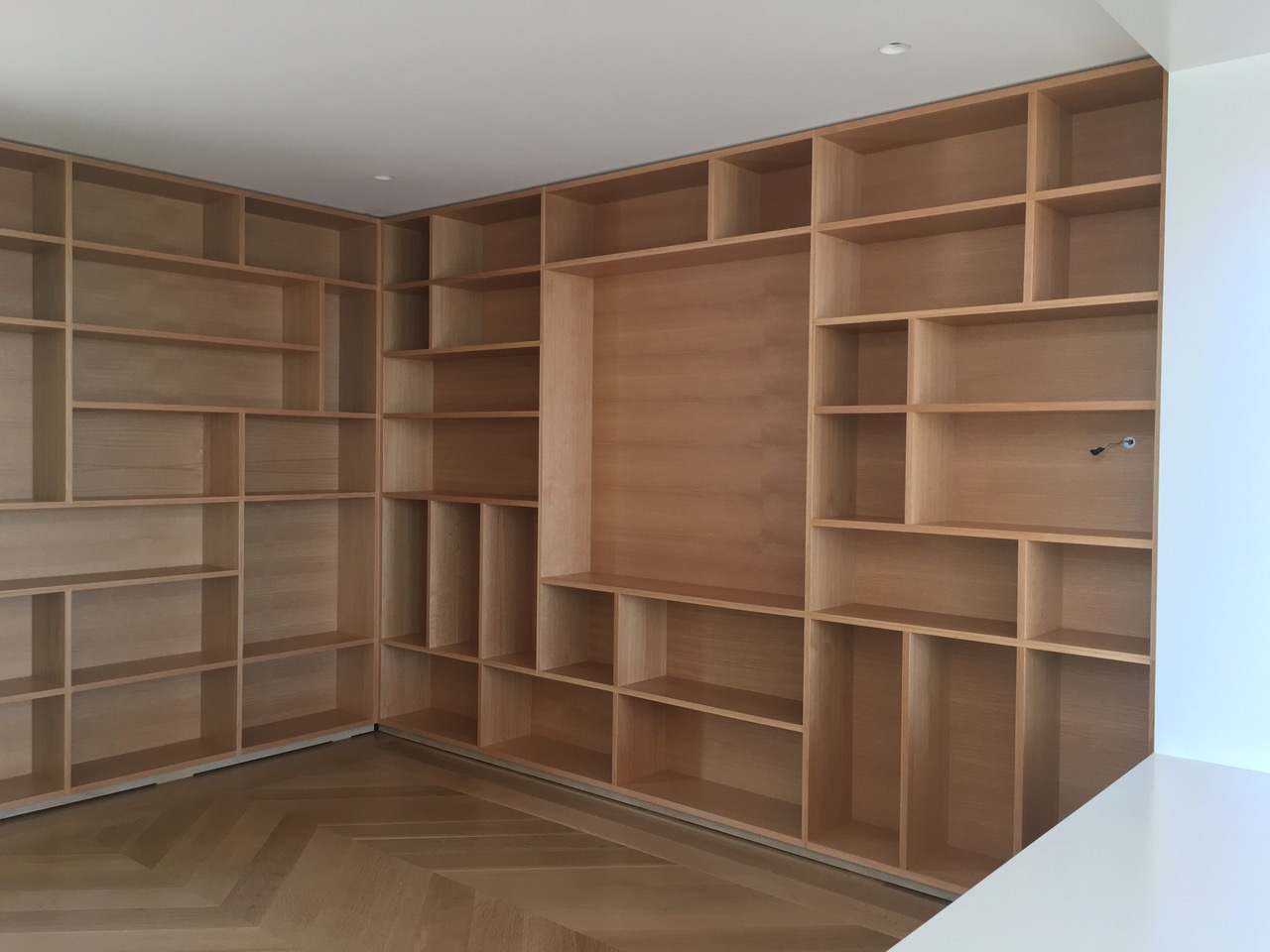

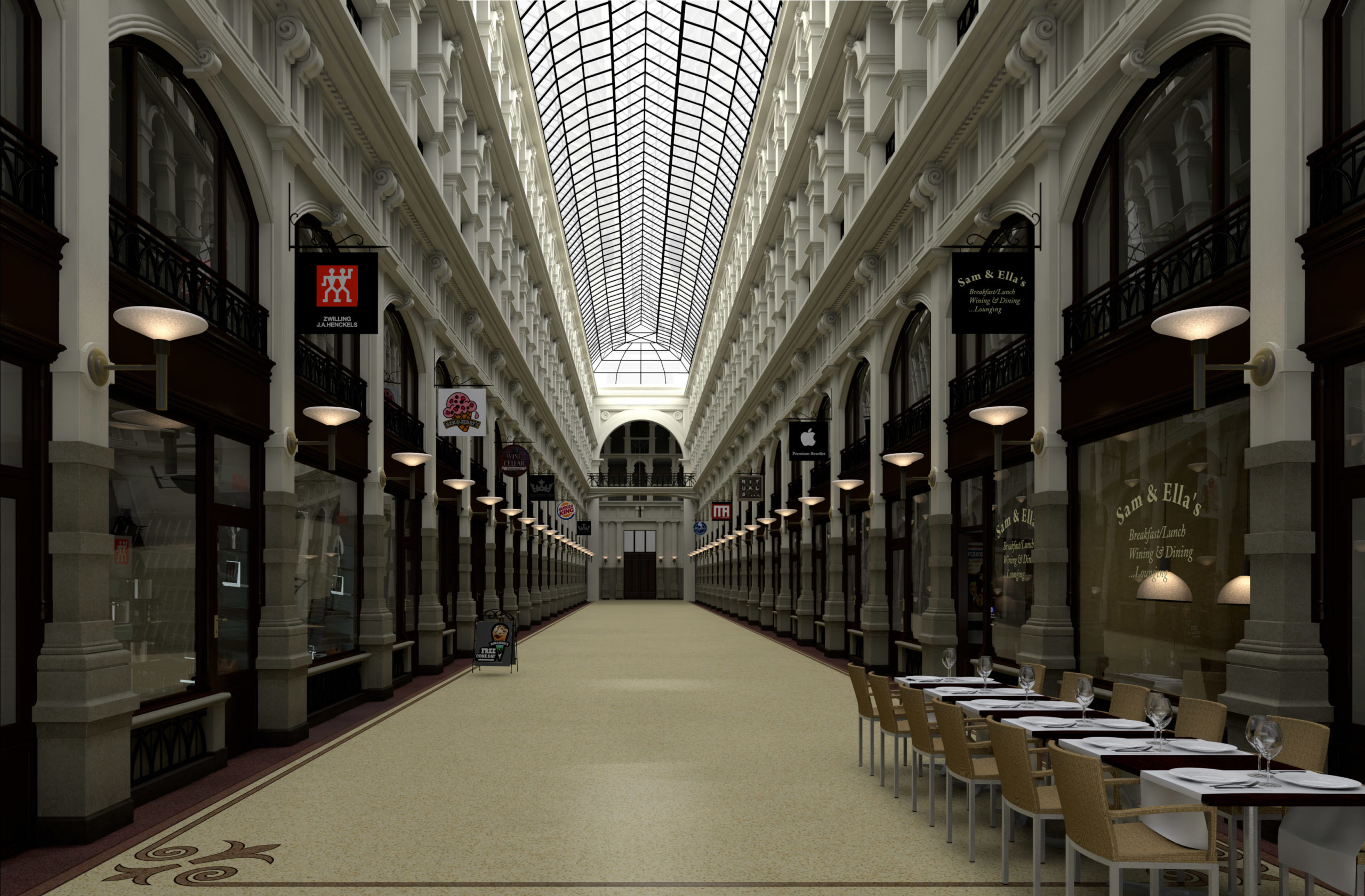

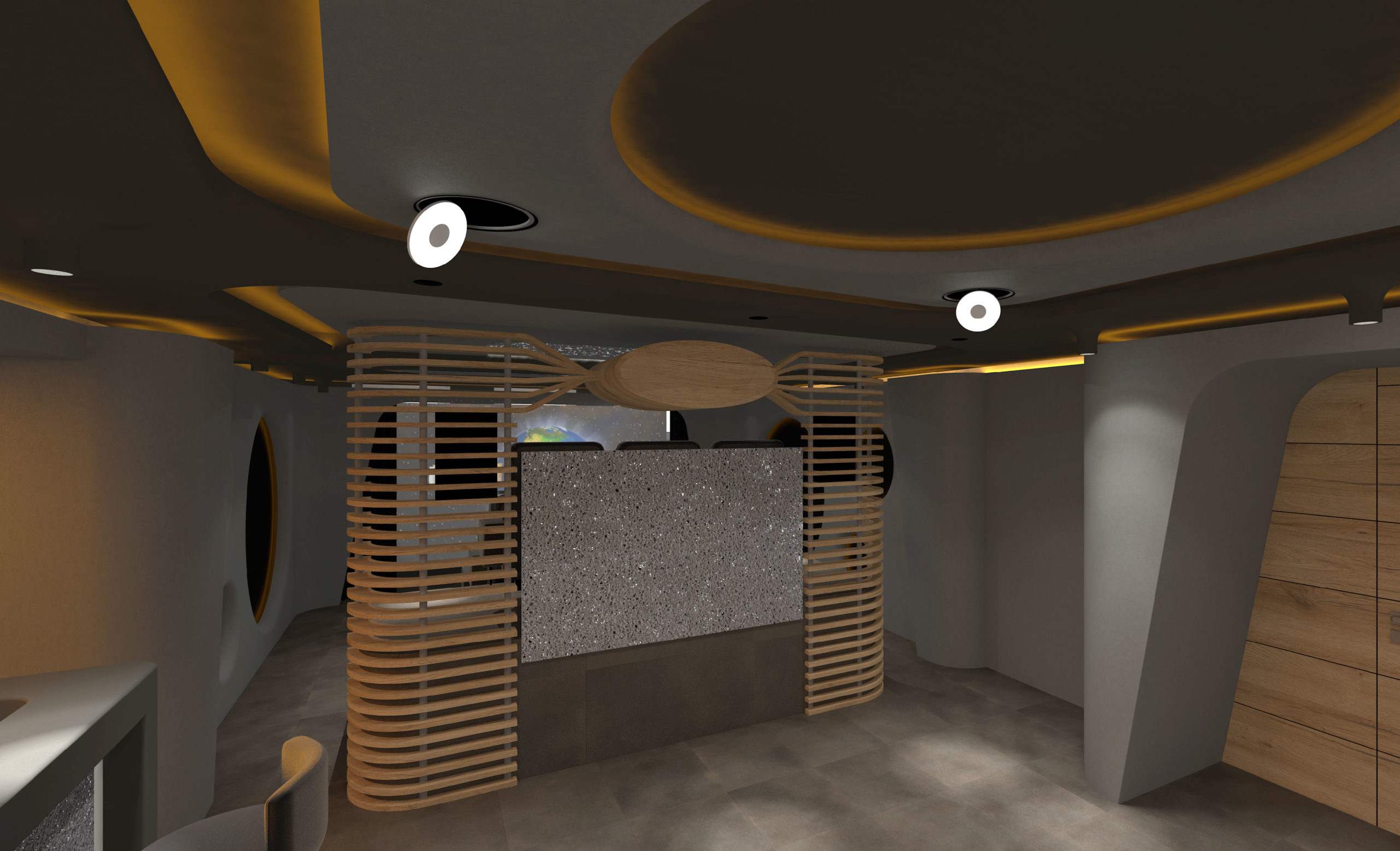

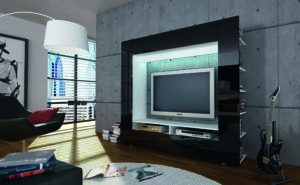

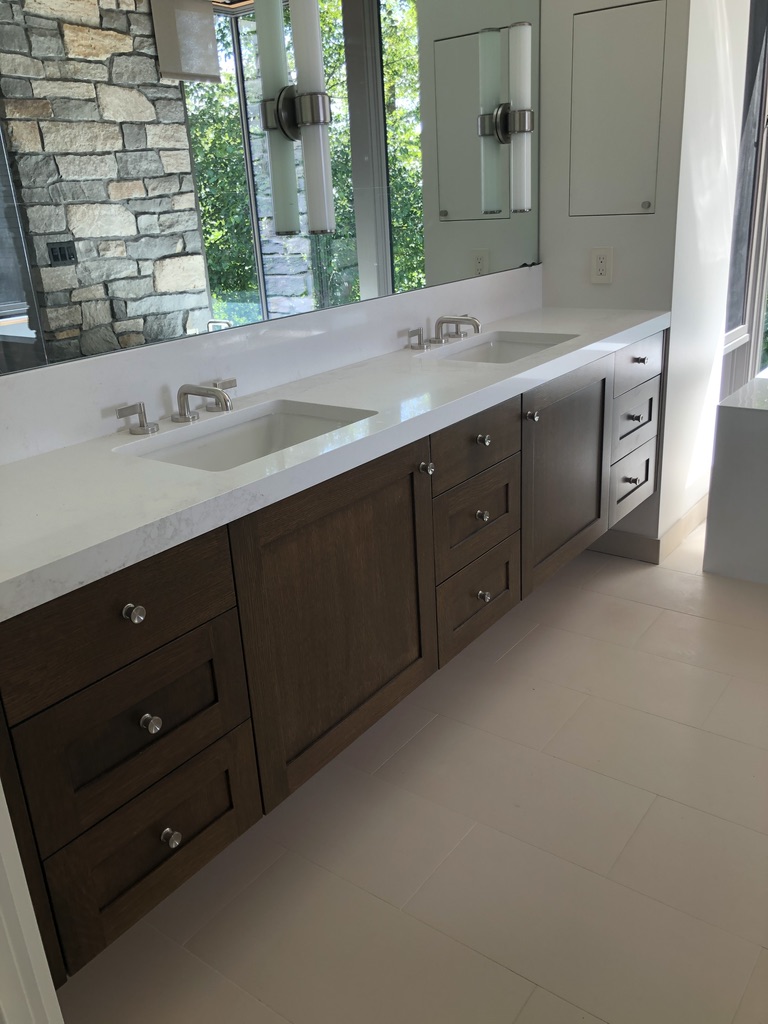

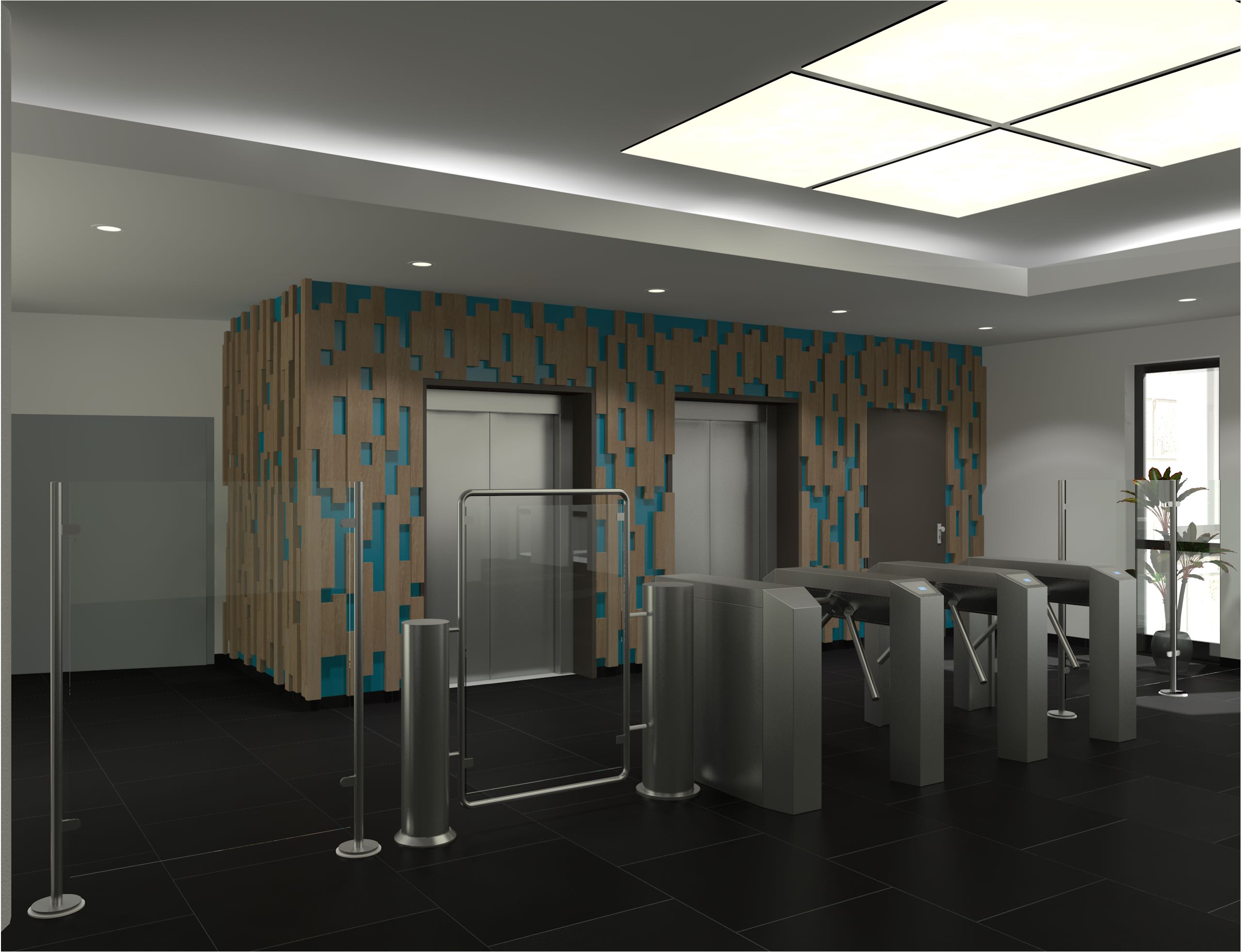

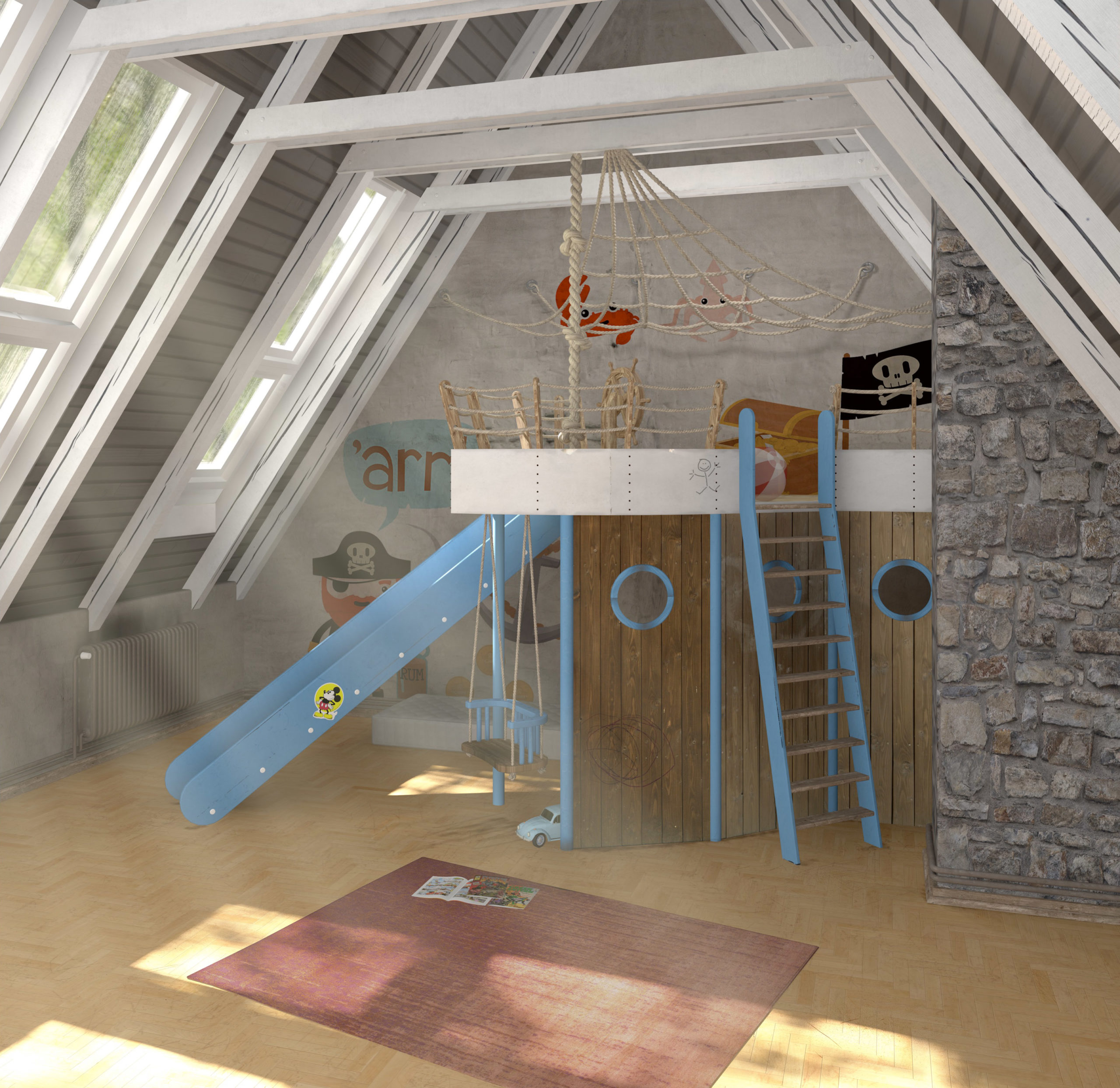

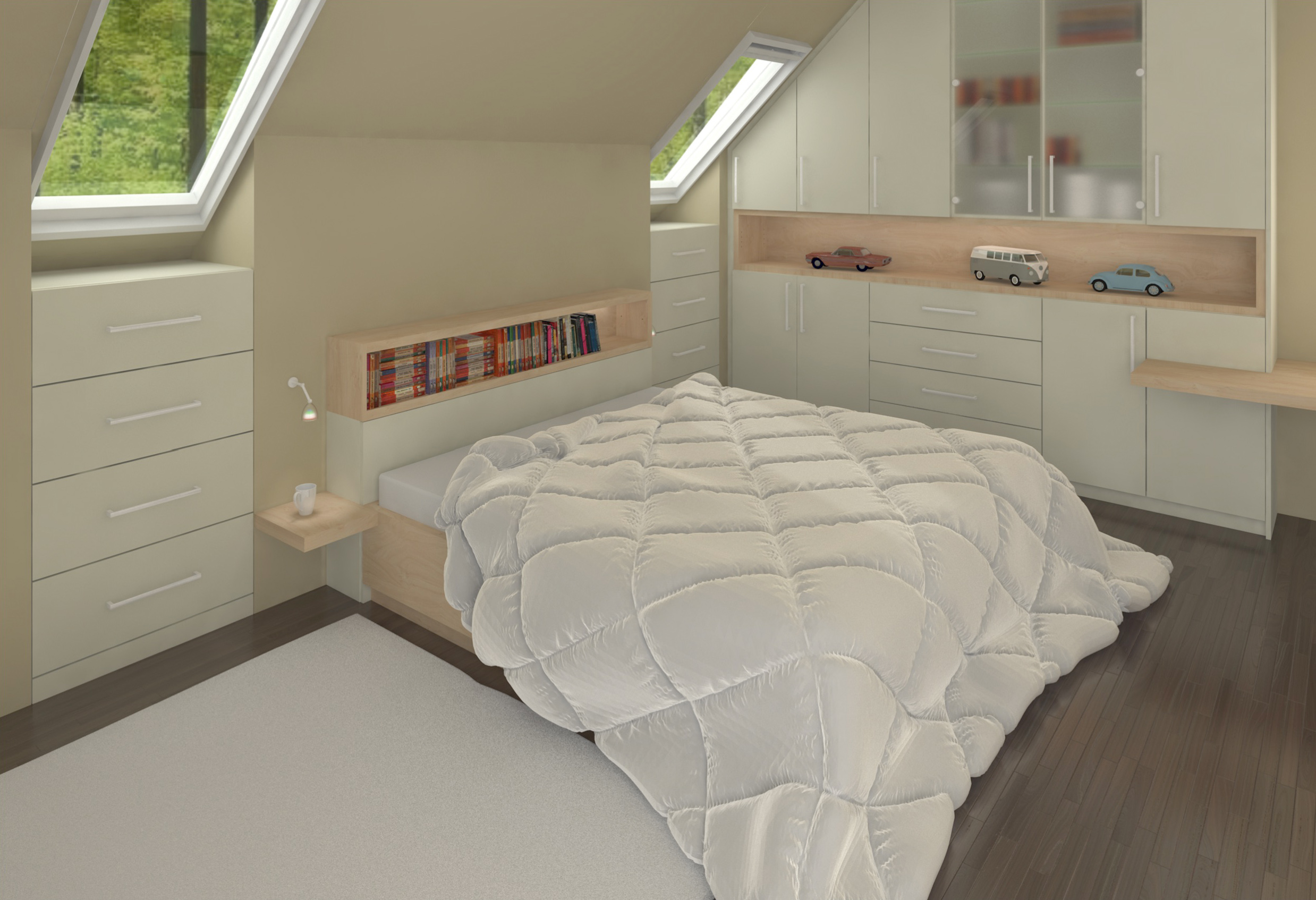

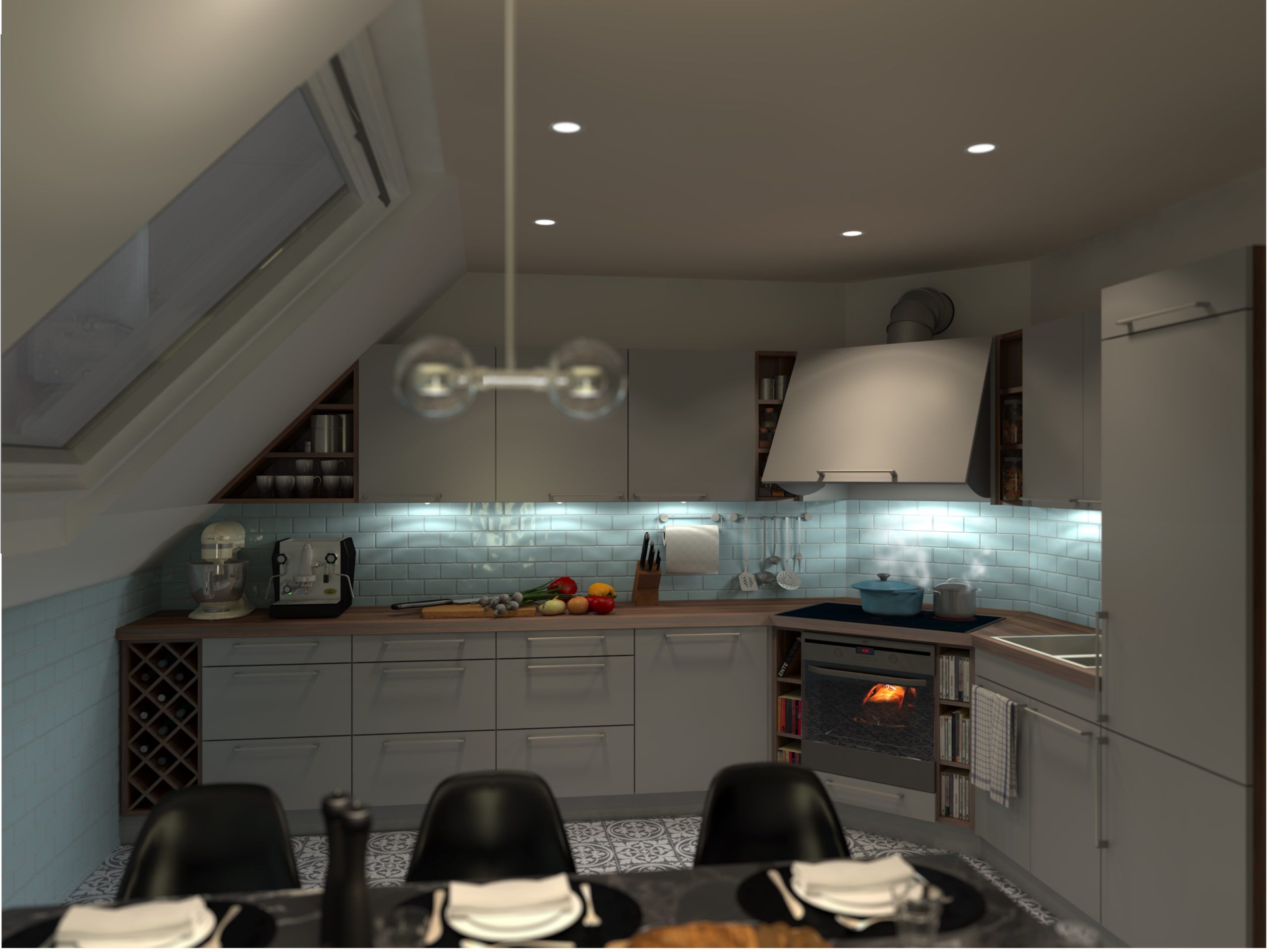

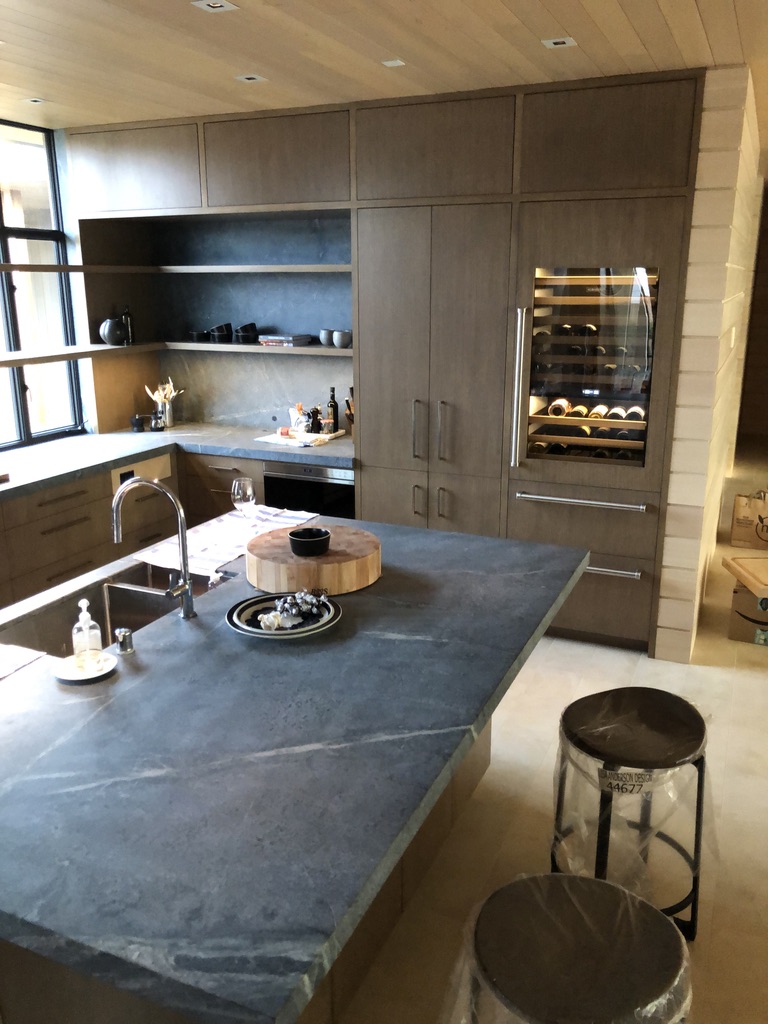

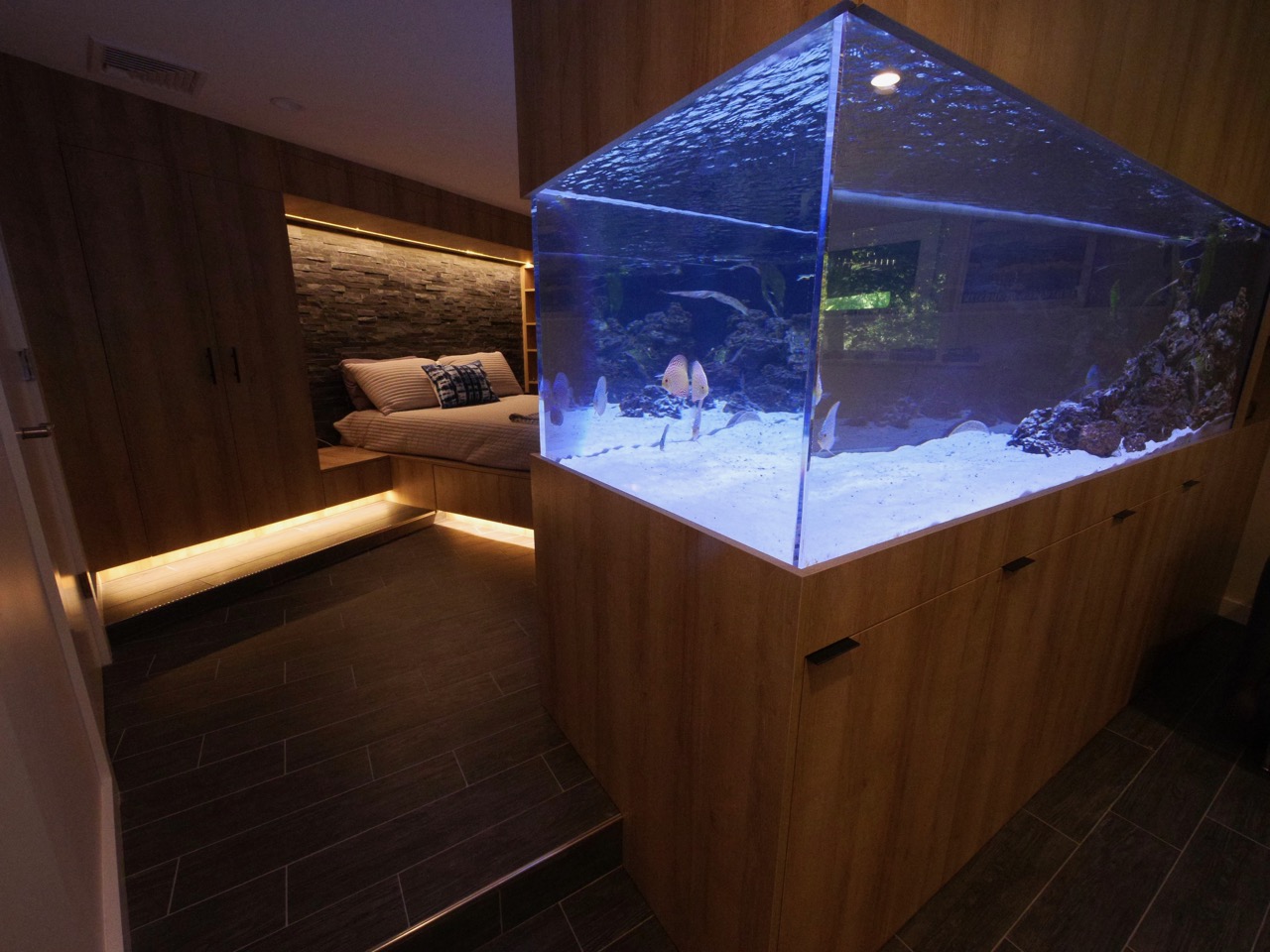

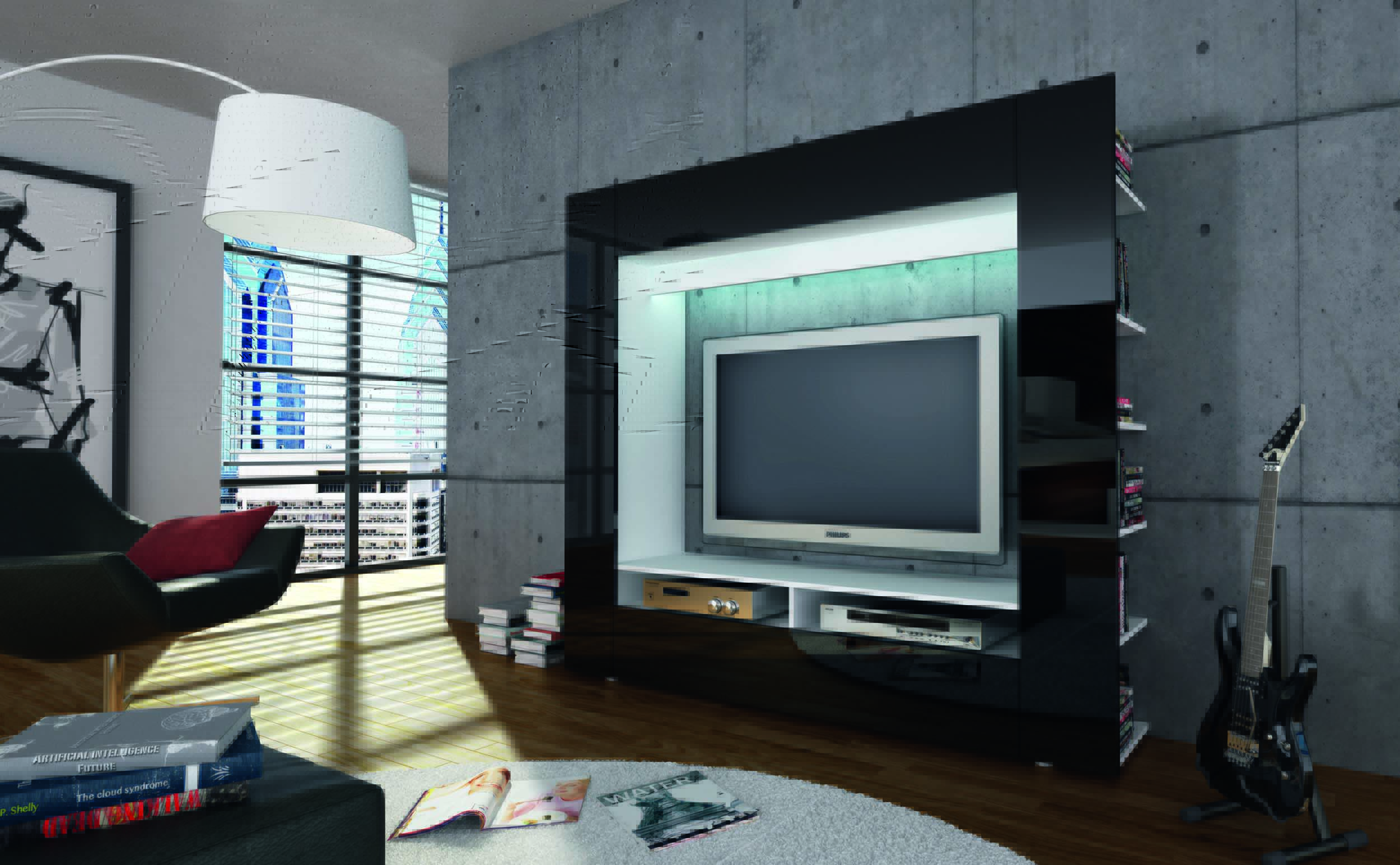

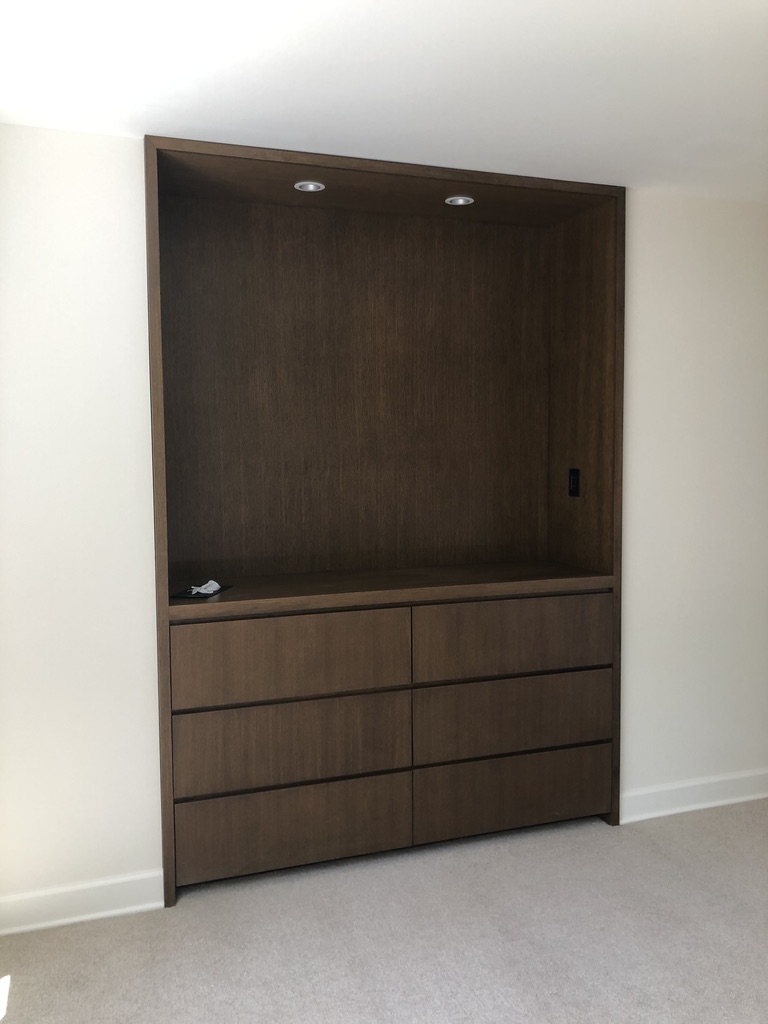

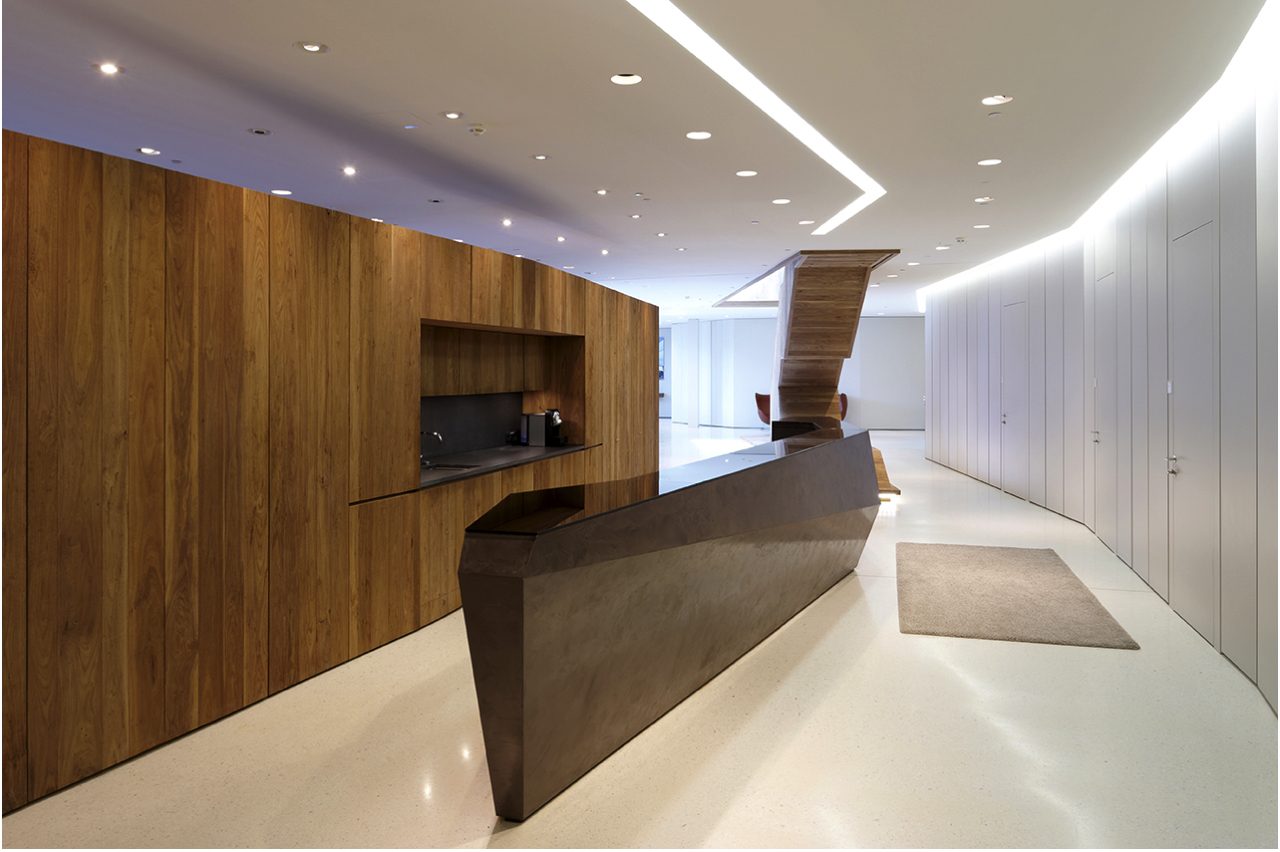

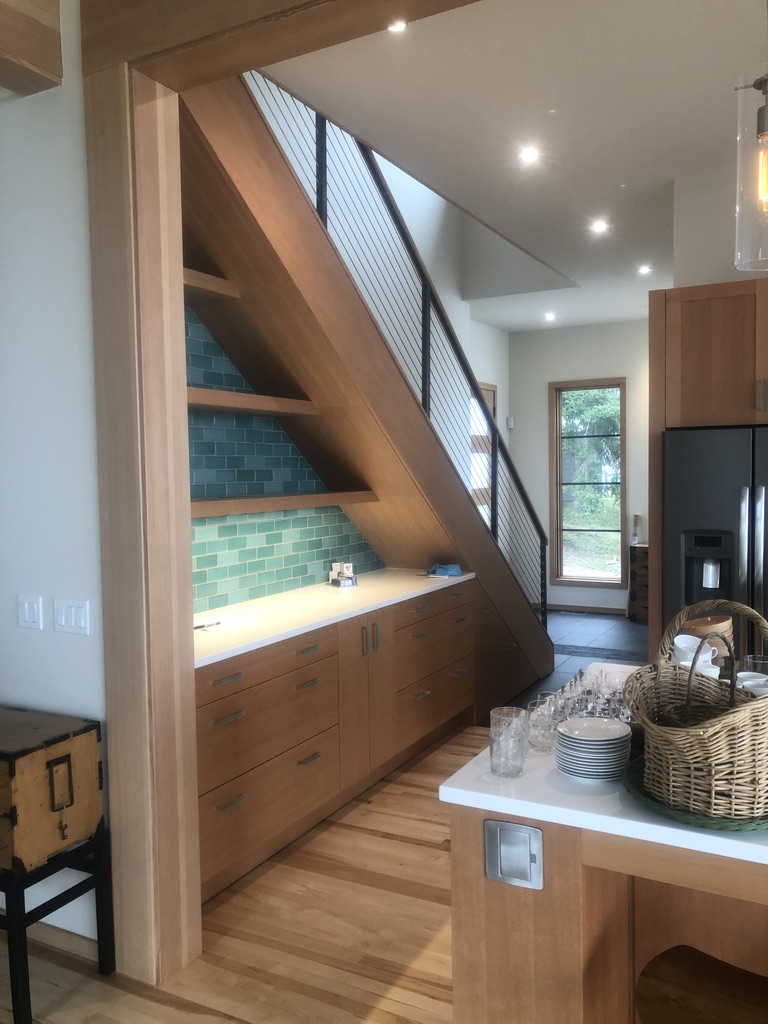

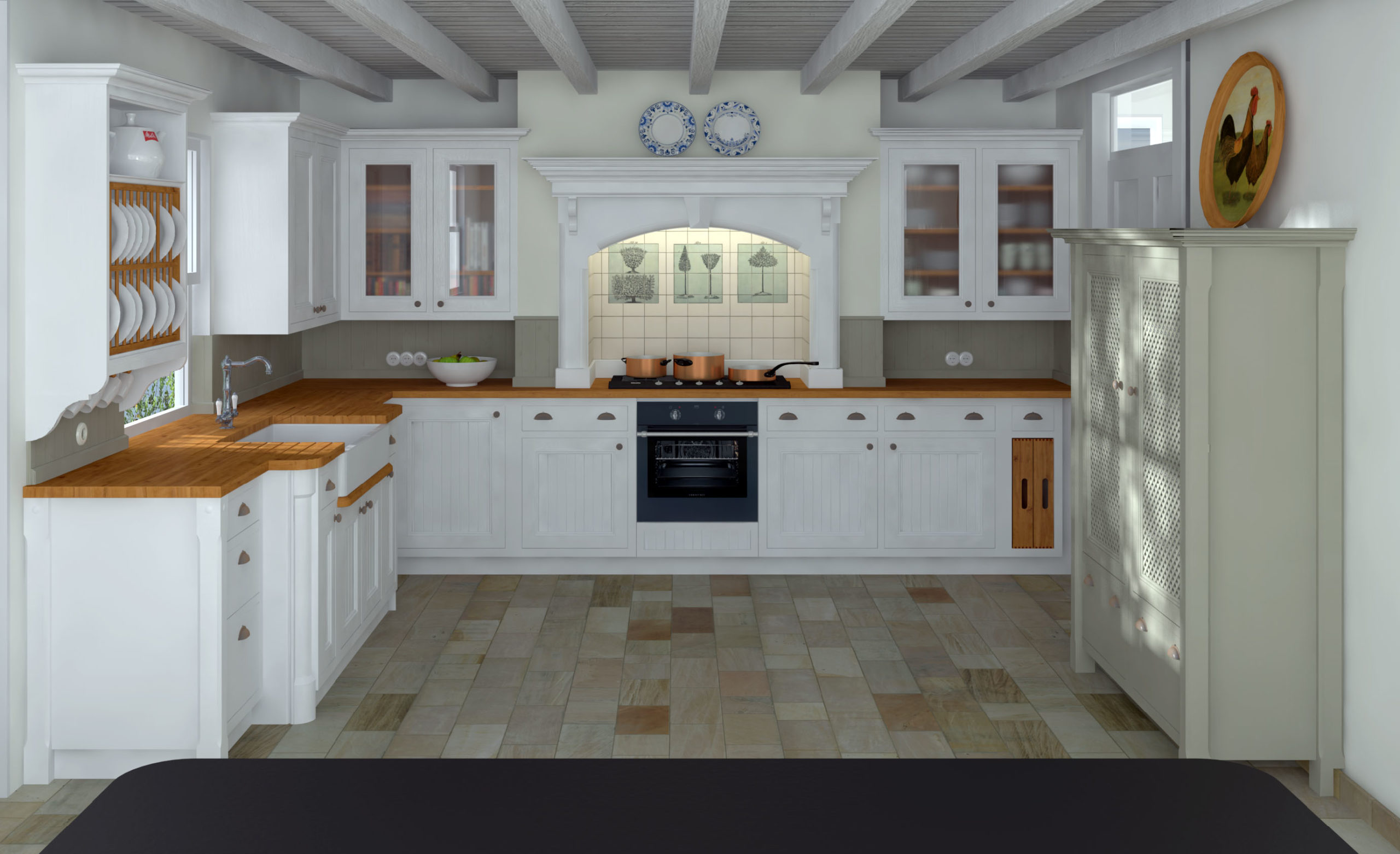

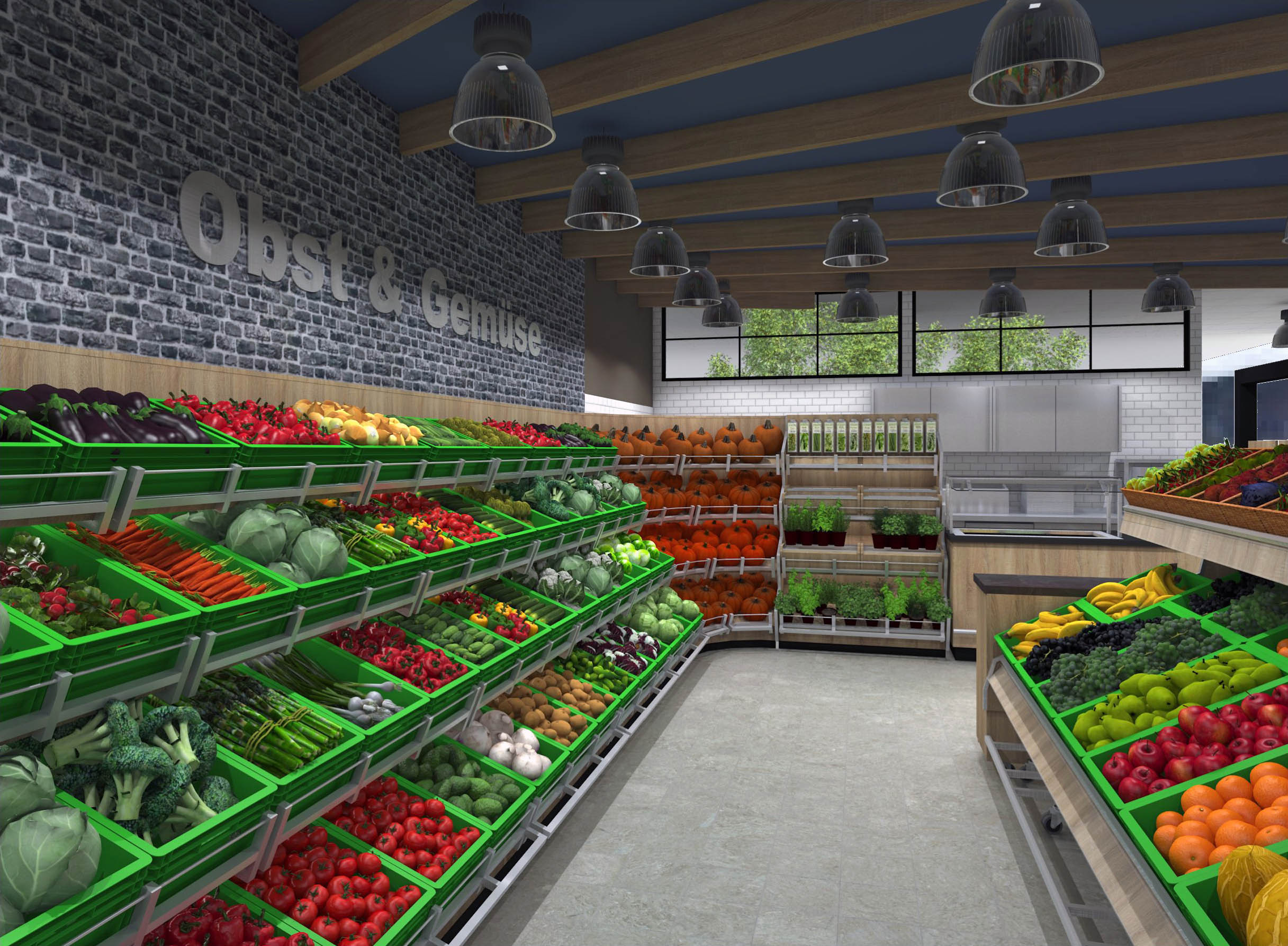

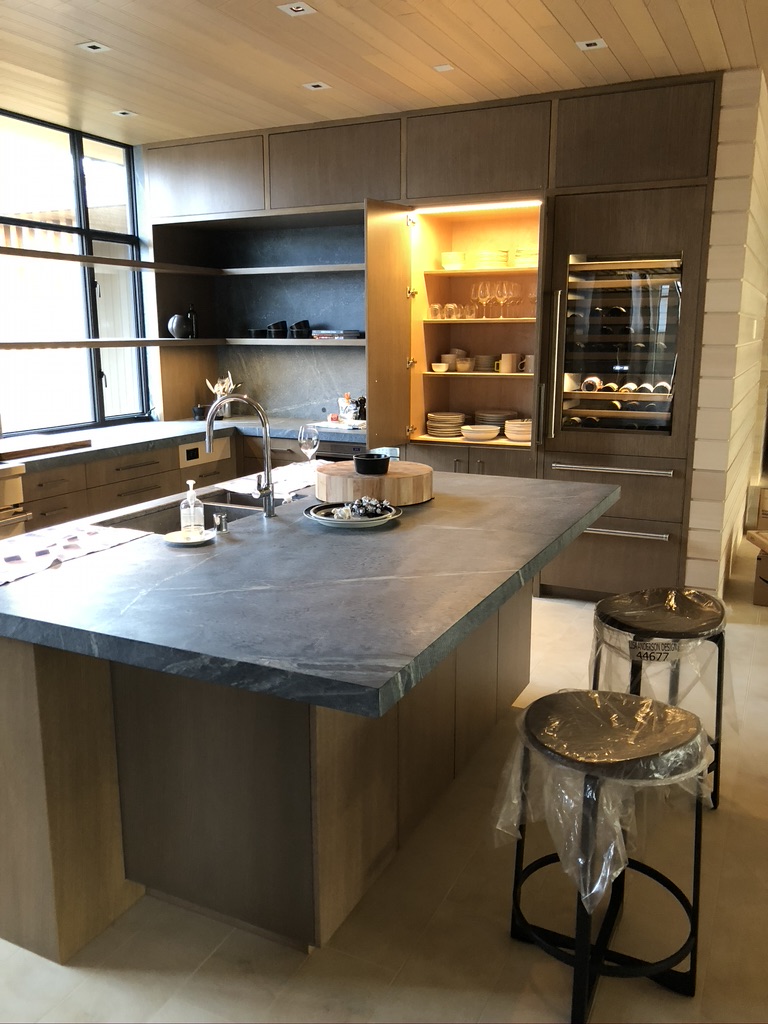

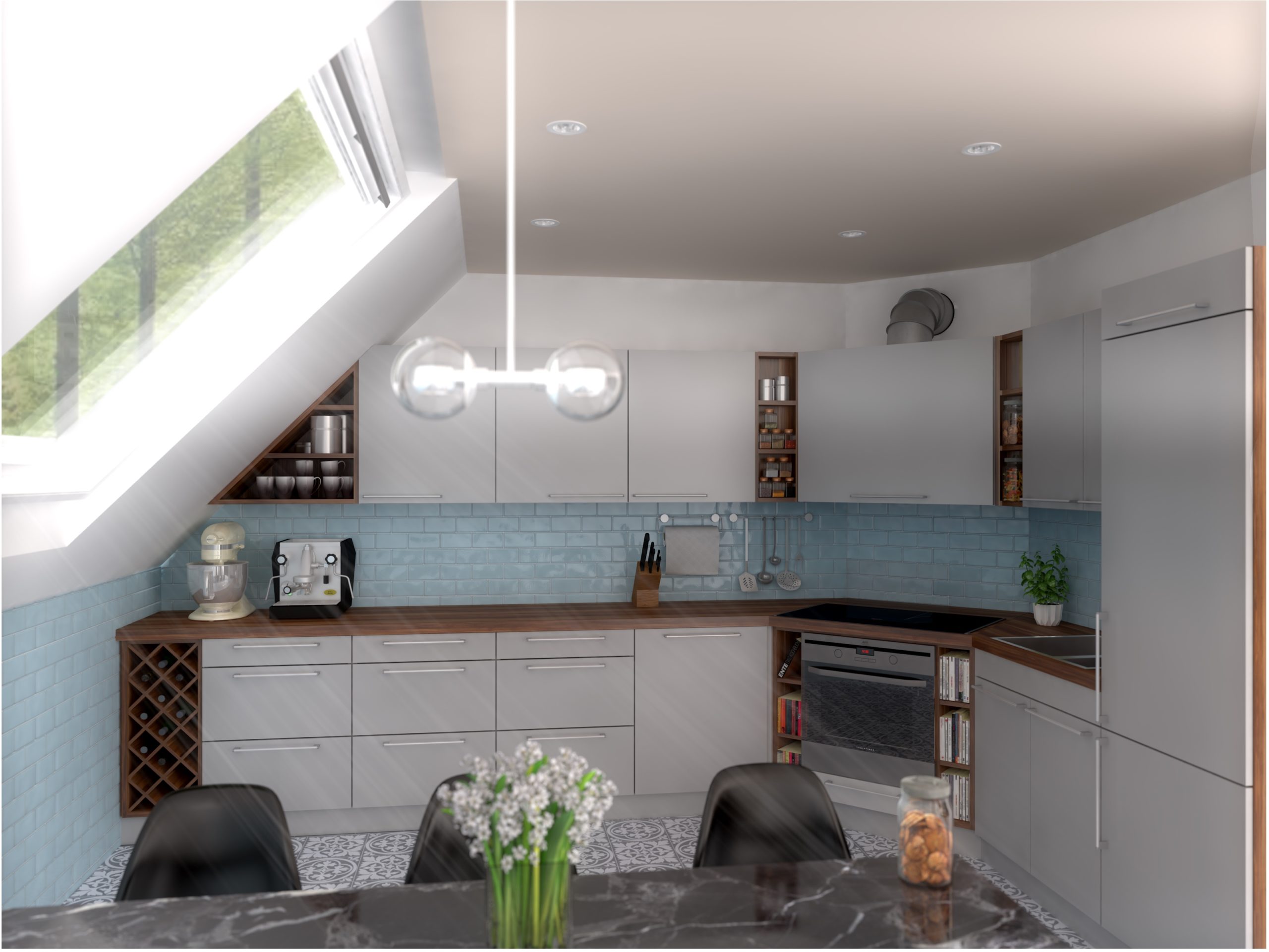

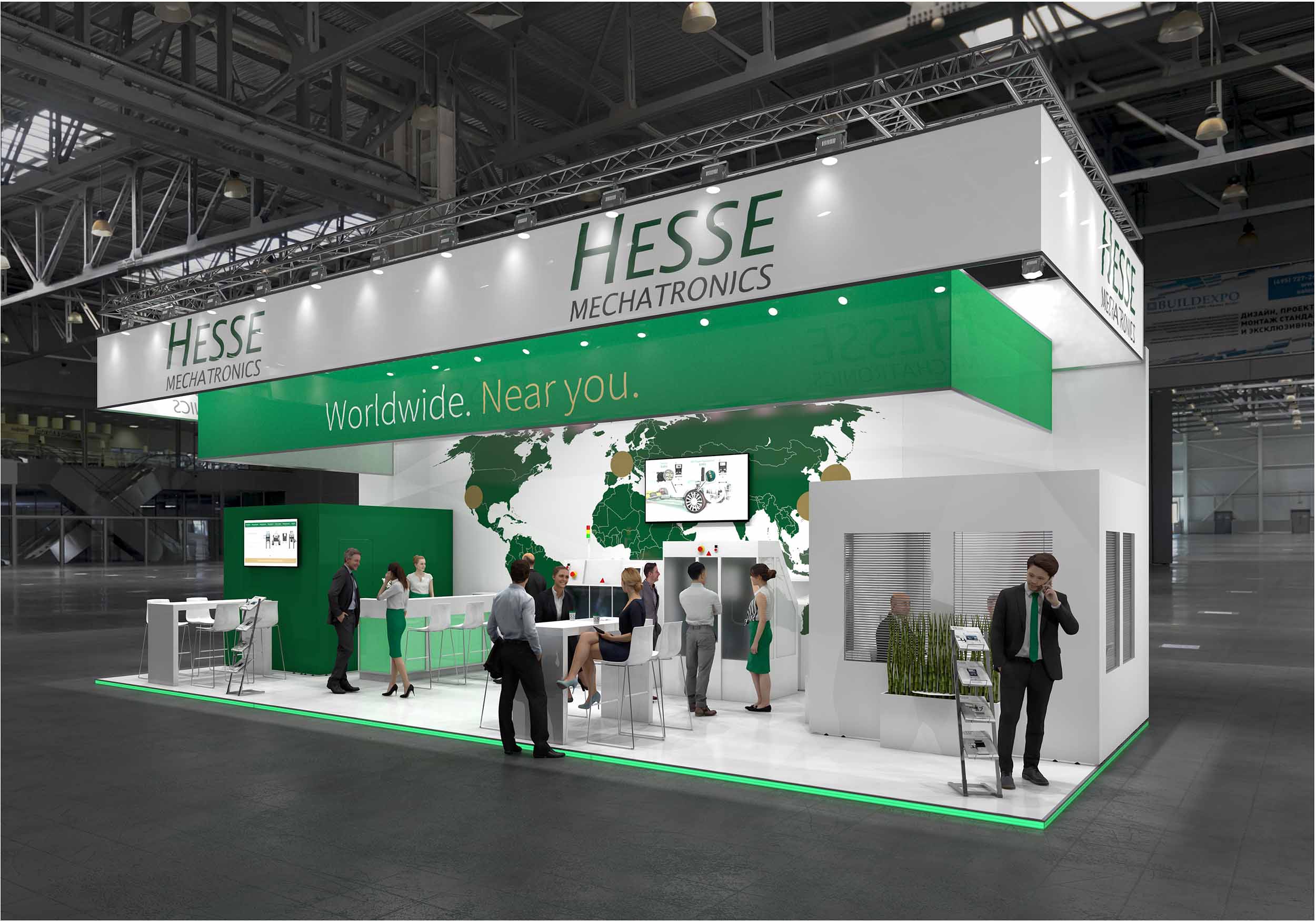

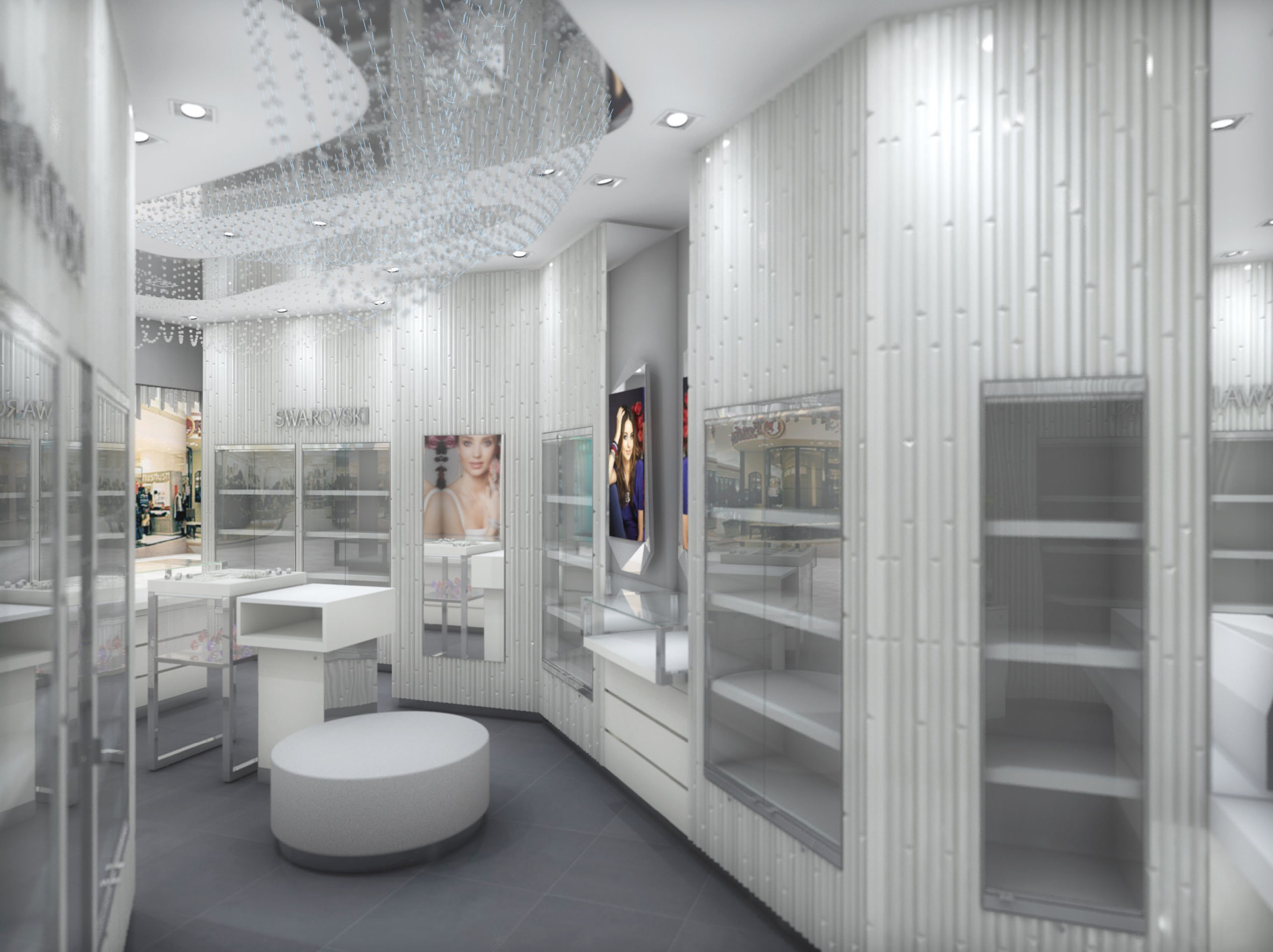

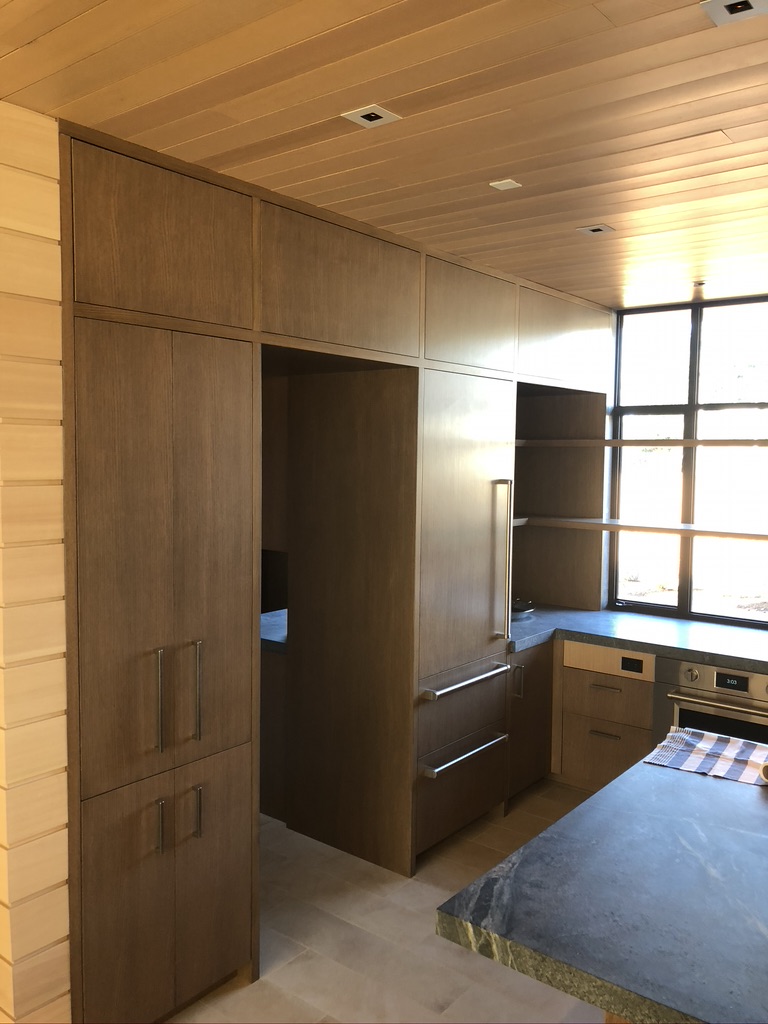

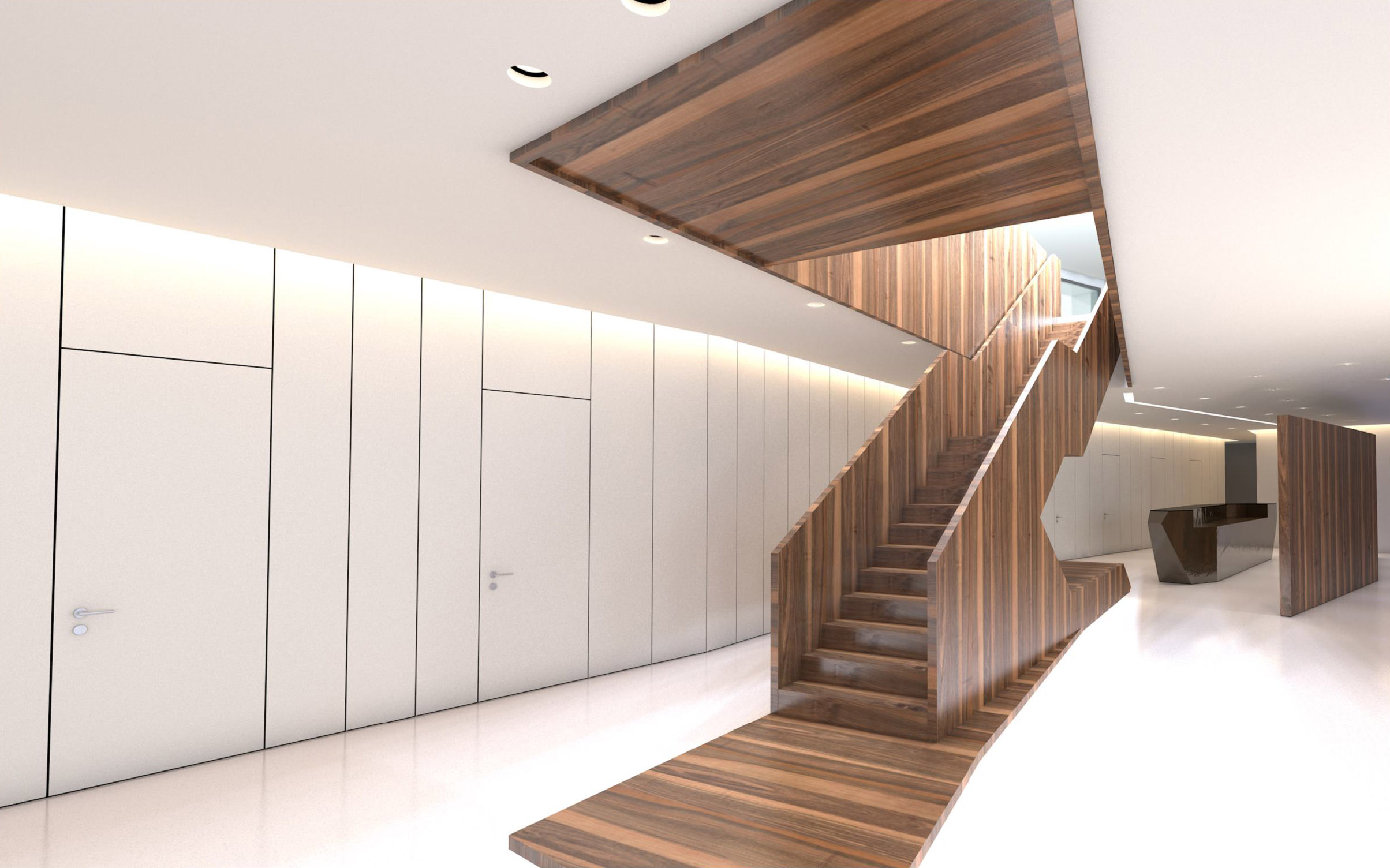

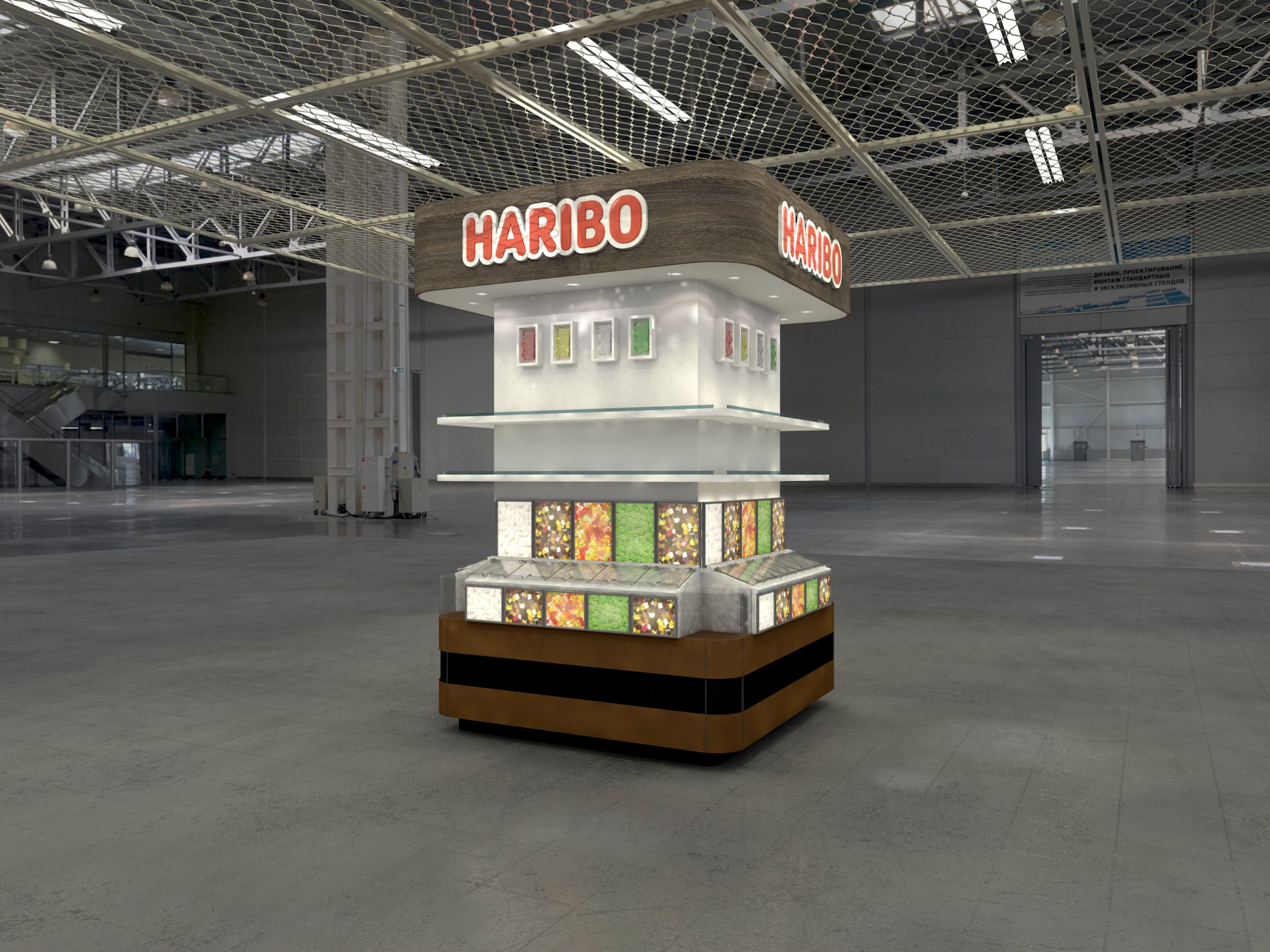

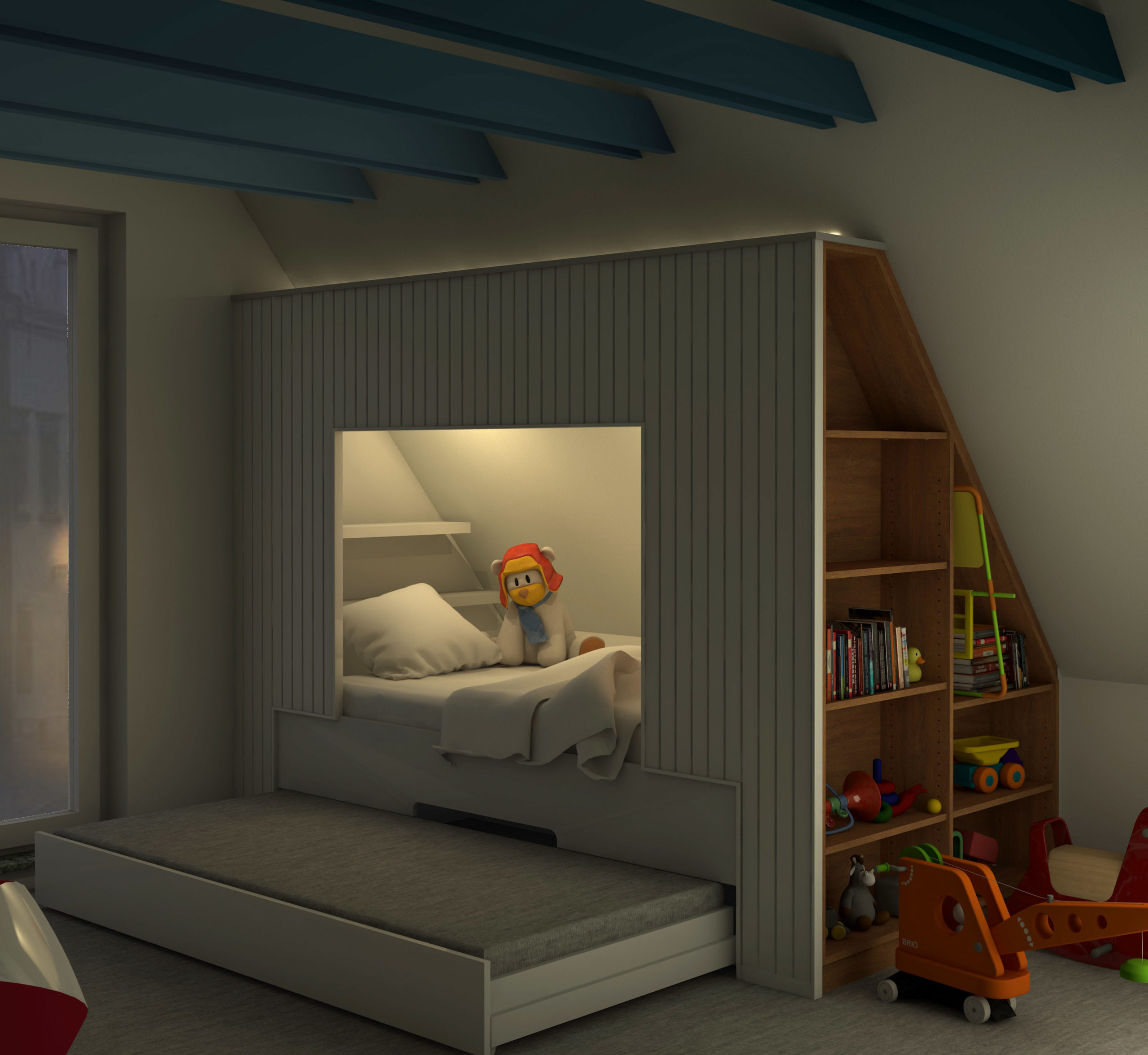

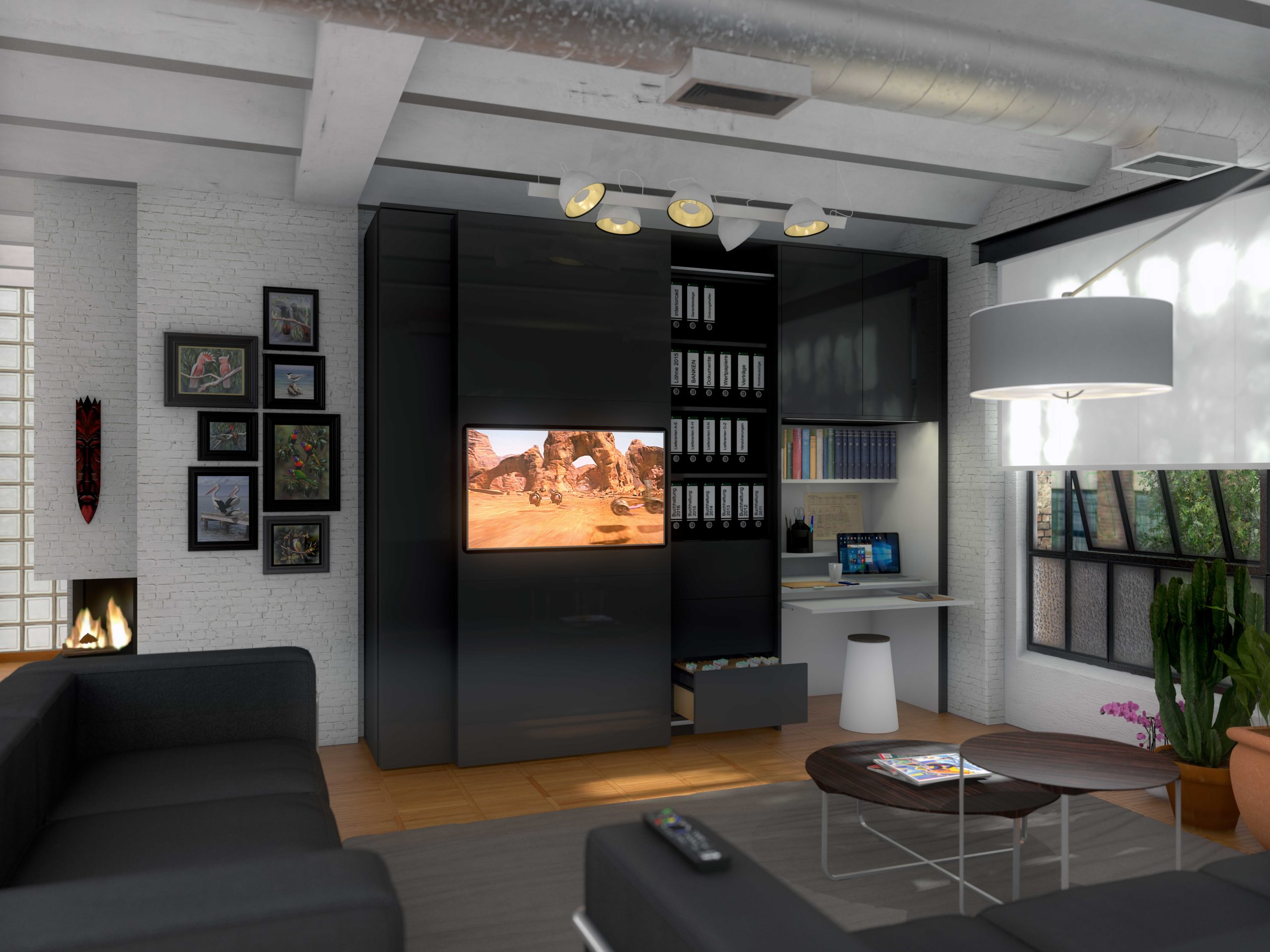

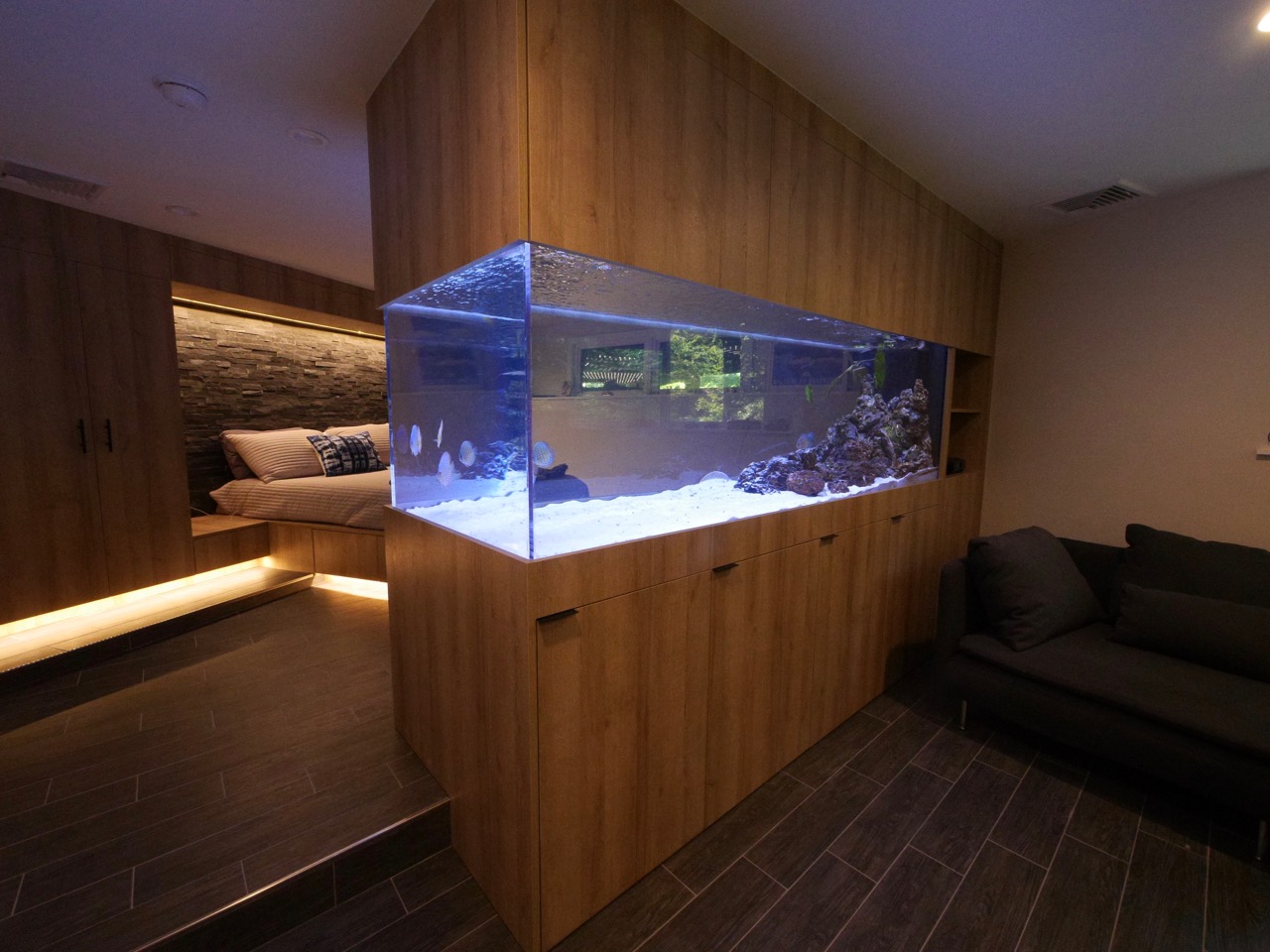

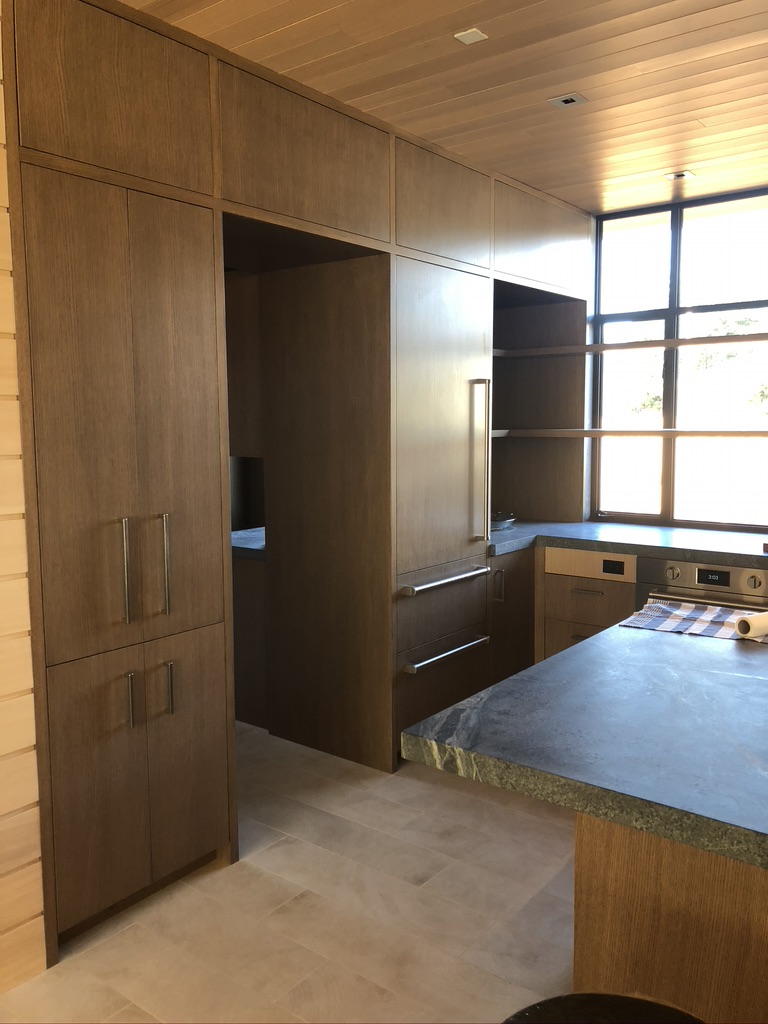

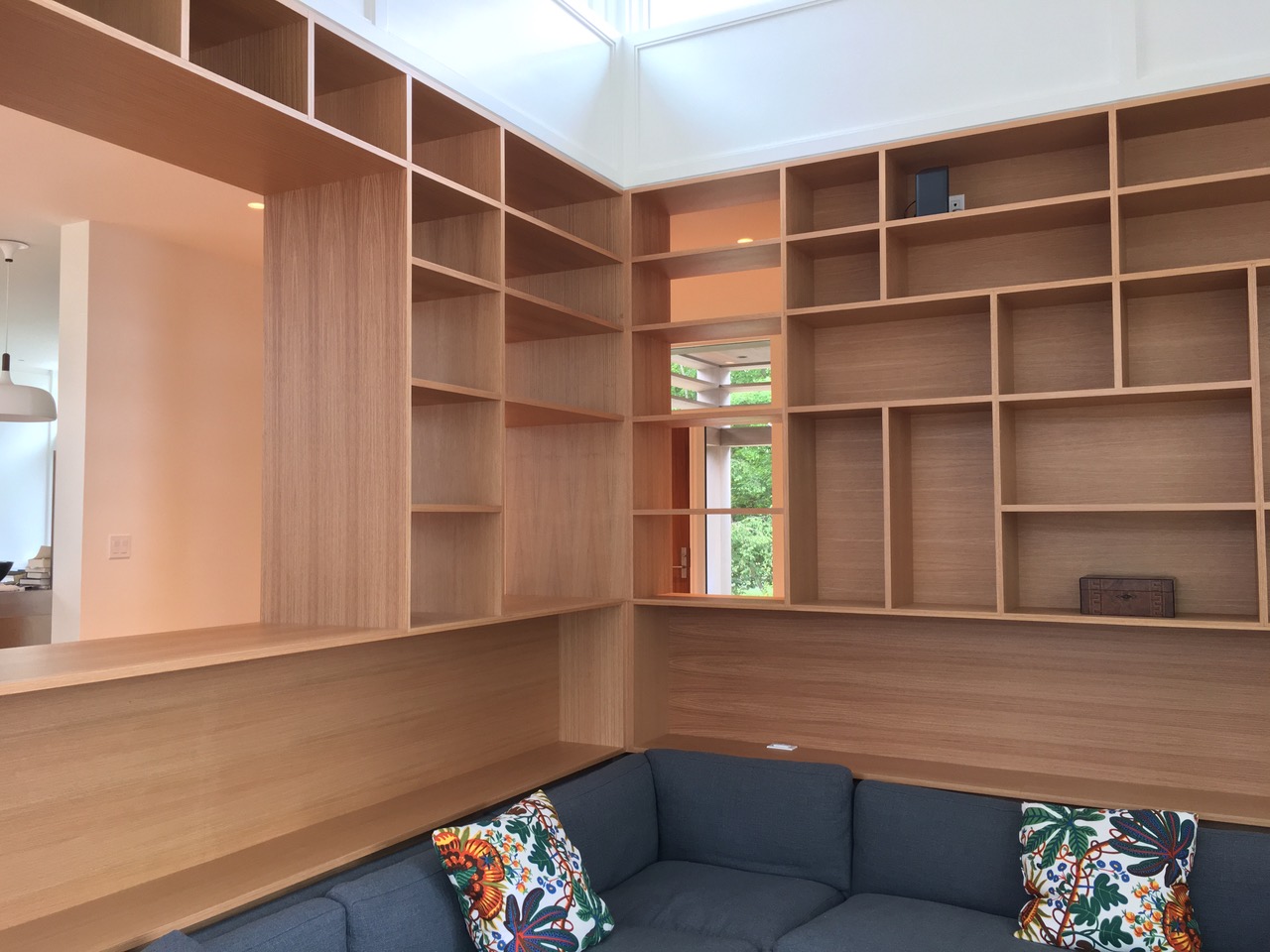

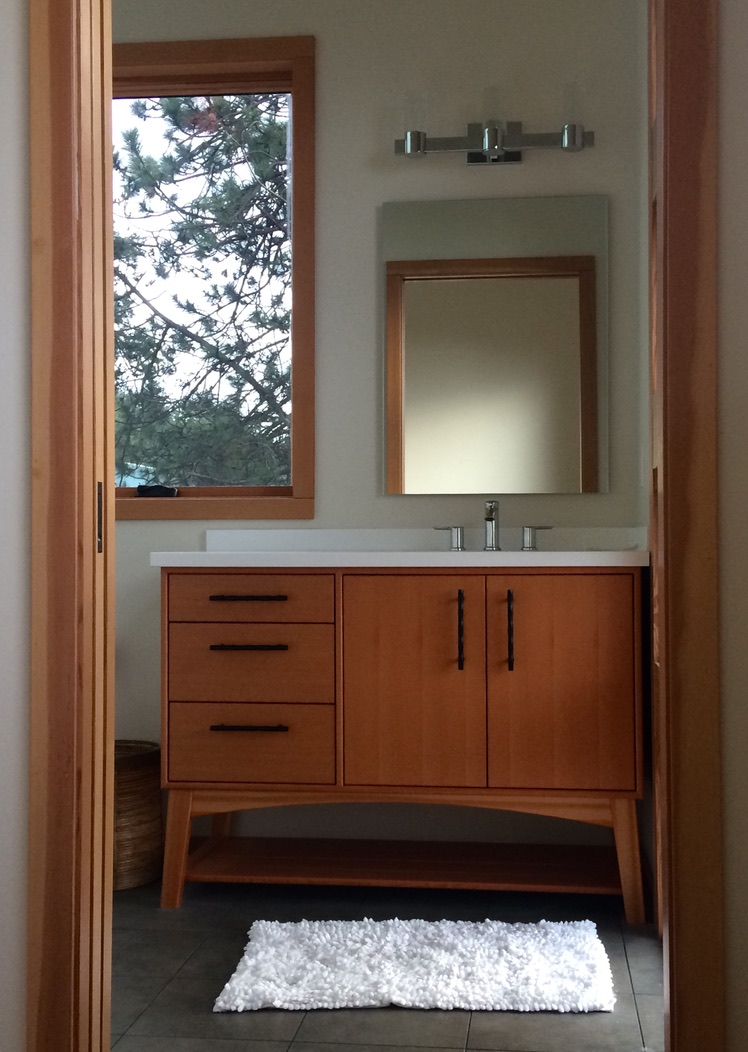

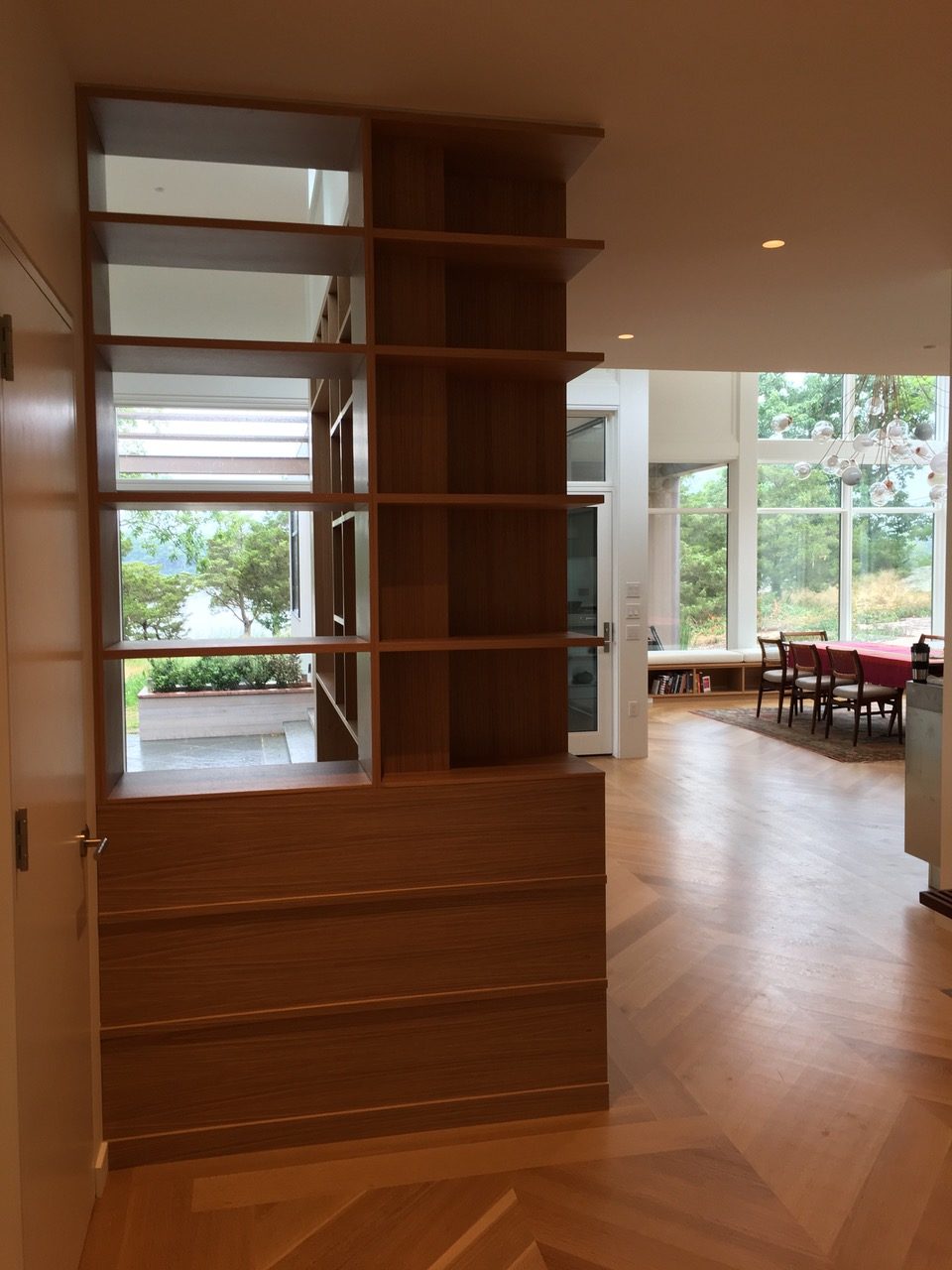

EXAMPLE GALLERY
